AVPro Edge AC-SC1-AUHD 4K60 (4:4:4) Up-Down Scaler / EDID Fixer
AVProEdge 4K60(4:4:4) Up-Down Scaler / EDID Fixer
The AVProEdge’s AC-SC1-AUHD is the ideal solution for integrators that are needing to distribute a signal to a variety of displays and keep an optimal picture. Integrators will enjoy it’s versatility of not only being able to control up/down scaling but han?dling EDID issues (including 4K HDR EDID’s), image enhancement, and being able to access audio from the stream. This scaler is ready for future content as well as it’s able to distribute 18Gbps signaling. Yet if you have 1080p displays the AC-SC1-AUHD will make sure it’s getting the right picture.
This product works great alongside one of the AVProEdge’s Matrix’s allowing yourself to give the customer the best resolution possible.
18Gbps Up/Down Scaler, EDID Manager, Audio De-Embedder & Image Enhancer?HDMI 2.0(a/b) w/HDR & HDCP 2.2
- 4K–>1080P Downscaler
- 1080P–>4K Upscaler
- Plug & Play Auto Scaling & EDID
- 16 EDID Options (Including Auto & HDR EDID Options)
- Custom User EDID Option
- L/R Audio De-embedding
- Video Enhancement Circuit

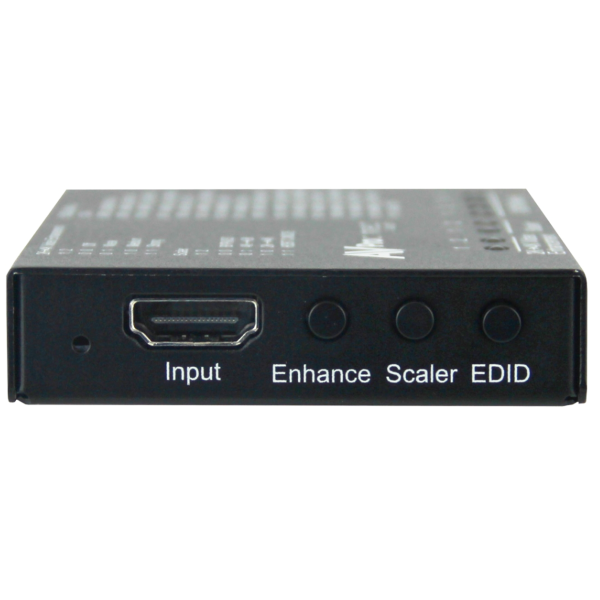

- Simple, easy to use. 3-Button Operation
Key benefits of using AC-SC1-AUHD:
Full HDR Support: With a plethora of HDR EDID’s to choose from, HDR is now able to be activated on capable displays no matter what the infrastructure requires. This allows flexibility in system design and allows you to maximize a budgets by providing HDR content where you want it.
4K–>1080P Down Scaling: This is possibly one of the most important features in the mixed system. Most AVR’s, matrix switchers, and other peripherals do not have the ability to scale. Typically, 4K systems are limited to the maximum resolution of the cheapest or oldest display, which is normally 1080P. If you took the most expensive 4K matrix, you would still have to “dumb down” the entire system to be compatible. The AC-SC1-AUHD is the solution! Simply place the scaler in before the 1080P display/s and enjoy 4K content on the capable displays while keeping the same content on the 1080P display/s.
HDBaseT Compatibility Mode (HDBT-C): This EXCLUSIVE AVProEdge technology will allow conversion of high bandwidth signals (between 9 Gbps – 18Gbps) like UHD Players, HDR Content, Gaming Systems, PC’s, and Media Players. This type of conversion uses a proprietary algorithm that minimally impacts the original image, therefore, passing transmission of HDR and high bandwidth signals over long distance transmission devices like HDBaseT Extenders (AC-EX70-UHD). It also supports the use of a display that does not support 18Gbps. Best of all, this is managed on a per output basis which allows for complete control over what individual runs are “down-clocked”.
1080P–>4K Up-Scaling: This feature combined with the image enhancement circuit will take those drab 1080P sources and dazzle on a 4K display. A 4K display will automatically upscale the picture to 4K (ultimately relying on a display component), however, it will not look as professional, had you used the AC-SC1-AUHD.
The Most Advanced EDID Management: There are 16 pre-loaded EDID settings from legacy technology (1080P) to full 4K and HDR Options. This is the only device that will provide this unique EDID combination. The AC-SC1-AUHD also has custom user EDID for future use, total customization and EDID bypass for using the sink EDID.
L/R Audio De-embedding: The AC-SC1-AUHD has an audio output which allows audio to be stripped anywhere in a system and re-routed to where it?s needed most. AC-SC1-AUHD units can be combined and multiple streams can be stripped from multiple outputs or sources.
2K–4K Video Enhancement Circuit: Maximize the viewing experience when enabling this circuit! Legacy content will certainly be in every system these days, but this feature ensures that the best possible image is provided on the new 4K displays and projectors.
- For mixed systems with SD, HD and UHD displays within a matrix. Since a matrix will typically ?down-clock? to the lowest common format, putting a scaler in will essentially ?trick? the matrix into sending 4K UHD material. The scaler will downscale the content to 1080P for the HD display.
- As an Audio Extractor ? Stand-alone audio extractors cost about the same thing, so purchasing the AC-SC1-AUHD which does so much more, is a no brainer.
- EDID causes about 80% of HDMI connectivity issues ? The AC-SC1-AUHD can fix them all.
- EDID capture and emulation ? would you like to test end points prior to hanging that 600 pound projector 100 feet up on the ceiling? Use the AC-SC1-SUHD and your problem is solved.
Whats in the box?
- Operating Instructions
- Power Supply
- MINI-USB Cable
- Mounting Ears
|Dimensions||6 × 6 × 4 in|
