Cleerline SSF-1×2-RUGGED Industrial 1xSFP to 2xRJ45 Gb Switch with PoE+
Unit Requires:
(1) 1GB single mode or multi mode SFP Module
Find them here
Product Information
Documents

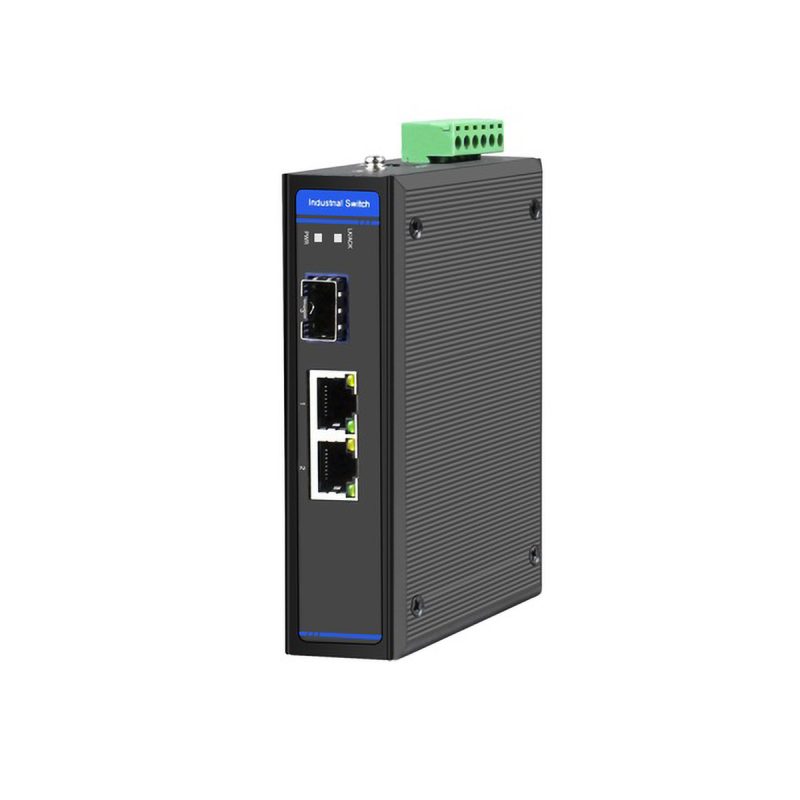

SSF-1×2-RUGGED Industrial 1xSFP to 2xRJ45 Gb Switch with PoE+
The SSF-1×2-RUGGED is a 2 port Gigabit Ethernet 10/100/1000Base-TX to 1000Base-X non-managed Industrial Ethernet Switch. This switch also provides PoE+ 30W per port power. It is designed with a hardened case for use in extreme operating temperatures (-40 to +75°C). The rugged metal housing is IP40 rated and intended to withstand mechanically or electrically extreme environments.
This industrial switch features strong surge protection (4kV ~ 8KV) per port and is compliant with IEC and EN standards for industrial grade equipment.
SSF-DIN-48V-PS is recommended with this item.
Features
- DC power input block 48-52V
- Extreme operating temperature: -40 to 75°C
- Rugged IP40 rated metal casing, DIN rail bracket
- Store and Forward switching mechanism
- Reversed power polarity protection
- Auto-Negotiation & Auto MDI/MDI-X on every RJ45 port
- Supports 6kV surge protection per port on all TP ports for PoE models
- Supports IEEE 802.1Q Tag VLAN pass thru
- Redundant DC power inputs on every model
- 60W total PoE power budget: 30W 802.3af/at per port
Additional information
| Weight | 1.1 lbs |
|---|---|
| Dimensions | 8 × 6 × 2.5 in |
