Connectivity Over Fiber to Front Gates, Docks, Garages, and Other Buildings

Connectivity Over Fiber to Front Gates, Docks, Garages, and Other Buildings

Front gates, docks, garages, and other buildings on your client’s property are great locations to extend network, A/V systems, and locate cameras. But using copper for connectivity either won’t work (too far), introduces noise, or exposes systems to potential voltage surges and lighting strikes. Here are several versatile solutions for bringing technology to just about anyplace you can imagine.

We carry a special breed of network switch that is made to work in remote and exterior locations called a “hardened, industrial switch”. These rugged products have a wide operating temperature range (from -40 degrees to +160 degrees) and be located in our of our Primex scaleable, NEMA rated exterior enclosures.


Design Notes:

  1. The ROBOfiber Hardened Industrial Switches come in 2-port, 8-port, and 16-port models. In addition, each model comes in a PoE+ or non-PoE and managed or unmanaged version.
    1. The PoE+ versions are limited to the following:
    2. The 2-port version has 60w available – to a maximum of 30w per port
    3. The 4-port version has 120w available – to a maximum of 30w per port
    4. The 8-port version has 240w available – to a maximum of 30w per port
    5. The 16-port version has 240w available – to a maximum of 30w per port
  2. You will need a power supply for each switch in your design – choose a 40w, 100w or 240w model, depending on the power requirments of the PoE devices you are using with the switch
    • The power supplies come as a kit that includes a 6in DIN rail (long enought to mount the power supply and the switch) and a 6ft grounded power cord that can be trimmed to length before connecting to the hot (+), neutral (-), and ground on the power supply.
  3. The 2-port and 4-port models have (1) SFP slot; the 8-port model has (2) SFP slots; the 16-port model has (4) SFP slots. You can “daisy-chain” several units (mix and match) for example:
    • Run fiber from a switch at the main equipment rack in the house to the garage; use the 8-port switch there for a wireless acces point, cameras, etc.; come out of the second SFP slot and run fiber to a front gate and use the 2-port switch for a gate controller/door station and a camera.
  4. Choose multi mode fiber and connectors for runs up to 1000 feet
  5. Choose single mode fiber and connectors for runs over 1000 feet
  6. The Solution Product List below has both duplex multimode and duplex single mode plenum rated fiber listed. Cleerline’s plenum rated jackets are indoor/outdoor wet-rated for use in conduit.
  7. We recommend using Rugged Micro Distribution (RMD) cable in conduit, and direct-burial rated jacket for dropping into the soil and burying it.

Example Diagrams

{Click on image to enlarge}

2-port Switch-PS-Enclosure_v1eb

2-Port Hardened Switch with Power Supply
in Weatherproof Enclosure

8-port Switch-PS-Enclosure_v1eb

8-Port Hardened Switch with Power Supply
in Weatherproof Enclosure


Solution Product List: Connectivity Over Fiber to Front Gates, Docks, Garages, and Other Buildings

Product name Unit price

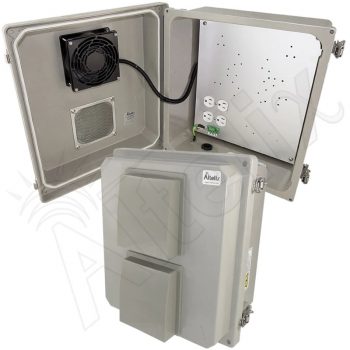

Altelix 14x12x8 Fiberglass Weatherproof Vented NEMA Enclosure with 120 VAC Outlets & 85°F Turn-On Cooling Fan
Altelix 14x12x8 Fiberglass Weatherproof Heated NEMA Enclosure with 200W Heater & 120 VAC Outlets
ROBOfiber HC-1002-SFP Series - 2x RJ45 +1x SFP Slot Gigabit Ethernet Industrial fiber switch, DIN rail mount, -40 to +75 Celsius
PoE:
PoE+ 60W Available (30W PoE+ per port)
ROBOfiber HGW-401S Series – 4x RJ45 + 1x SFP Slot Gigabit Ethernet Industrial Fiber Switches, DIN rail mount, with and without PoE+
ROBOfiber HGW-802 Series - 8x RJ45 + 2x SFP Slot Gigabit Ethernet Industrial Fiber Switches, DIN rail mount, -40 to +75 Celsius
ROBOfiber HGW-1604 Series - 16x RJ45 + 4x SFP Slot Gigabit Ethernet Industrial Fiber Switches, DIN rail mount, -40 to +75 Celsius
LightSpeed DIN Rail Power Supply Kits for ROBOfiber and Cleerline Media Converters and Switches
LightSpeed™ Multi Mode & Single Mode SFP Transceiver Modules
Cleerline SSF 9/125 Singlemode Duplex Fiber
Cable Jacket Rating:
CMP (Plenum Rated)
Length:
By the foot
Cleerline SSF 9/125 Single Mode Rugged Micro-Distribution OS2 Fiber
Strands:
2
Length:
By the foot
Cleerline SSF 9/125 Single Mode Direct Burial (Armored) (per foot)
Strands:
2
Length:
By the foot
Cleerline SSF LC Fiber Connectors
Fiber Type:
Single Mode
Connector Type:
UPC (Most Common)
Quantity per Package:
10
