AVPro Edge Fresco Fresco 4K 18 Gbps 2×2 Video Wall Processor
Matrix and video wall processor with instant HDMI source switching.
– Unique Dual-Mode Hybrid 4×4 HDMI Matrix Switcher with 2×2 Video Wall Processor
– Dynamic Instant HDMI Switching Between Unified Video Wall Mode and Per-Display Assignments

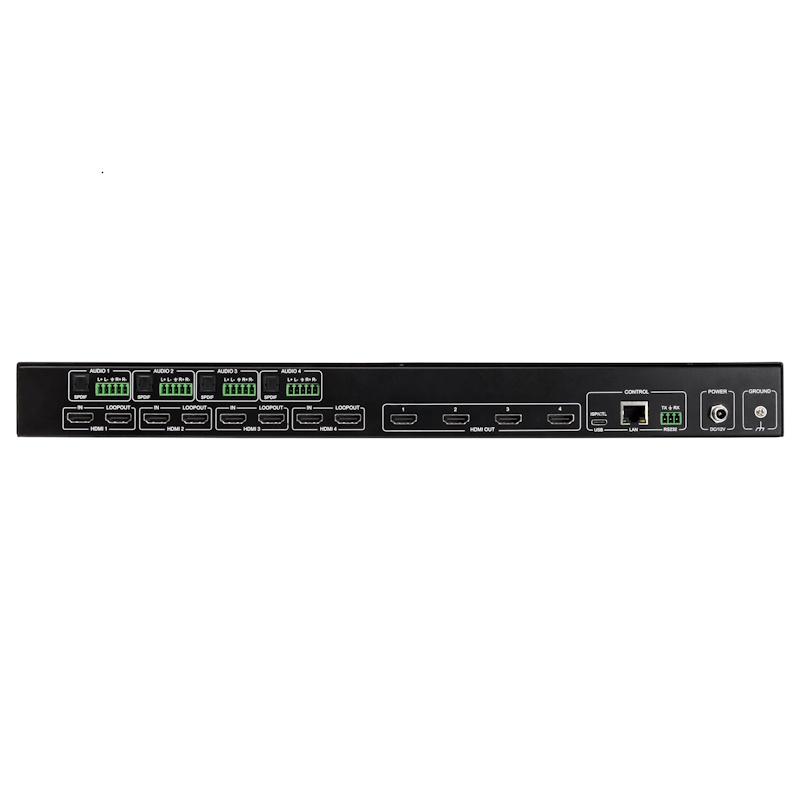

– HDMI Inputs Have Loop Outs with Analog and S/PDIF Audio Extraction
– Limit-Free Large Array Cascade Configurability
Product Information
Product Documents
Description
The AC-FRESCO-44 is another powerful, innovative AVPro Edge commercial integration tool destined to become an instant classic. Designed to provide instant, imperceptibly fast HDMI switching, this dual-mode hybrid HDMI matrix switcher with 2×2 video wall processing is perfect for new installations and especially for upgrading traditional 2×2 video walls with dynamic new capabilities. Retrofit traditional 2×2 single image configurations into offering four independent programs, with instant recall returning to a unified image at the press of a button. 4K to 1080p downscaling provides compatibility with legacy displays.
Source loop-outs enable multiple units to be cascaded to create larger arrays, synchronized easily for seamless processing, and simplified interconnectivity. EDID management ensures display compatibility while delaying the extracted audio up to 630 ms maintains lip-sync in any installation scenario.
The versatile AC-FRESCO-44 from AVPro Edge is perfect for video wall applications that require creative flexibility in markets such as hospitality, retail, education, government, command and control, and even houses of worship.
Key Benefits
Dual Display Modes – Functions as a video wall processor for a 2×2 native unified single source configuration (cascade-capable for larger arrays) or as an HDMI matrix switcher to display four separate sources.
Instant HDMI Source Switching – Delay-free, imperceptible instant switching, suitable for real-time production environments. In a monitored situation, switch from quad sources to a single source to immediately highlight live action.
Web GUI Video Wall Configuration – Use the built-in browser-based Web GUI to plot default picture mapping coordinates for each display in the video wall.
Scalable Configurations – HDMI source loop outputs with companion extracted analog audio and S/PDIF outputs invite limitless, creative, synchronized, cascading expandability into wall arrays of any size.
Supports 4K/60 fps 4:4:4 – Legendary AVPro Edge superior video signal processing delivers images with the highest fidelity.

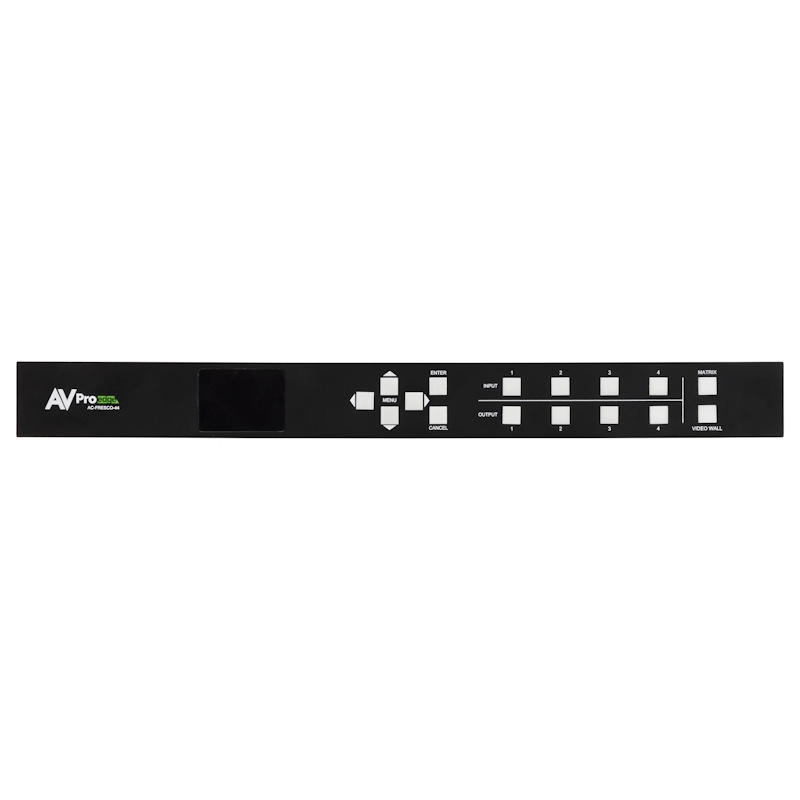

Web Interface and Front Panel Display and Control – Limited control functionality can be assigned with User-Only credentials, permitting video wall and source assignment, and audio control access only, keeping Admin settings secure.
4K Downscaling – Easily retrofit and refresh legacy installations with downscaling to 1080p. Update traditional single-source video walls with HDMI source matrixing.
Audio Delay and Extraction – Up to 630 ms of audio delay control through extracted audio aligns image and audio to eliminate distracting lip-sync issues.
Built-in Troubleshooting – EDID management and test pattern generation verify signal paths and ensure system compatibility.
LAN and RS-232 Control – Automation friendly with a comprehensive API.
AVPro Edge Warranty – Covered by AVPro’s 10-year no-hassle warranty
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 8.87 × 17.32 × 1.73 in |
