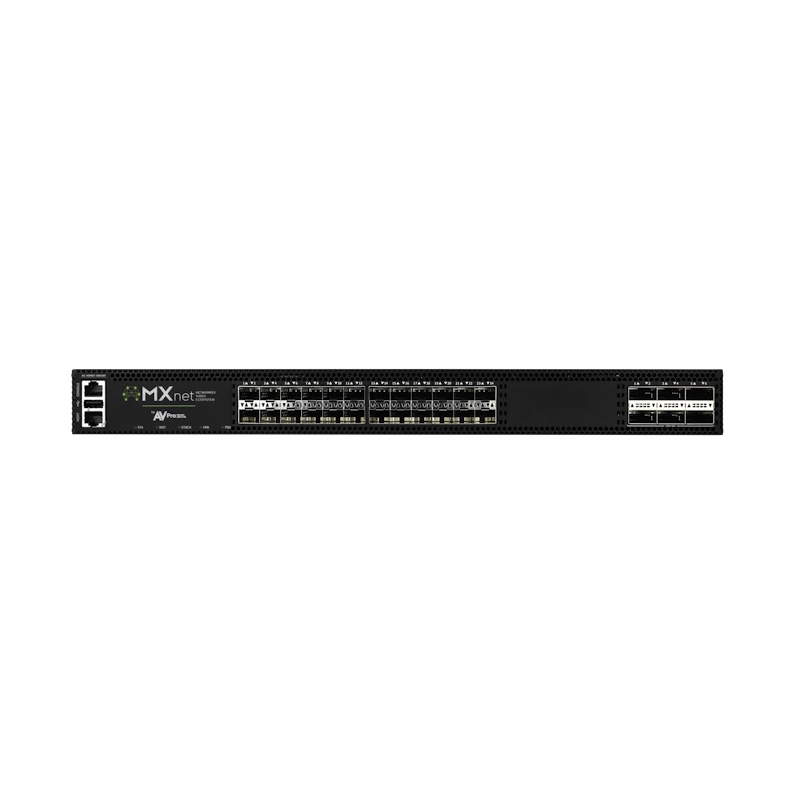

The AC-MXNET-SW24XF is built for AV-over-IP environments that need enterprise-grade bandwidth and reliability without the port density of a full 48-port core. With 24× 10G SFP+ ports and 6× 100G QSFP28 stacking ports, it supports SDVoE endpoint deployments that scale from a single switch to multi-switch uplinked configurations without rearchitecting the network.

Preconfigured for MXnet 10G (SDVoE) systems, the SW24XF eliminates manual setup. IGMP Snooping, VLAN segmentation, QoS, and LAG are all optimized out of the box to ensure predictable multicast performance and smooth video switching from day one.

Its full L3 switching architecture delivers 1.68 Tbps switching capacity and 600 Mpps forwarding, providing a non-blocking backbone even under full SDVoE multicast load.Dual-switch uplinking is fully non-blocking with just 3× 100G ISL, leaving the remaining 3x QSFP28 ports per switch free for additional endpoint expansion or uplinking to another switch.

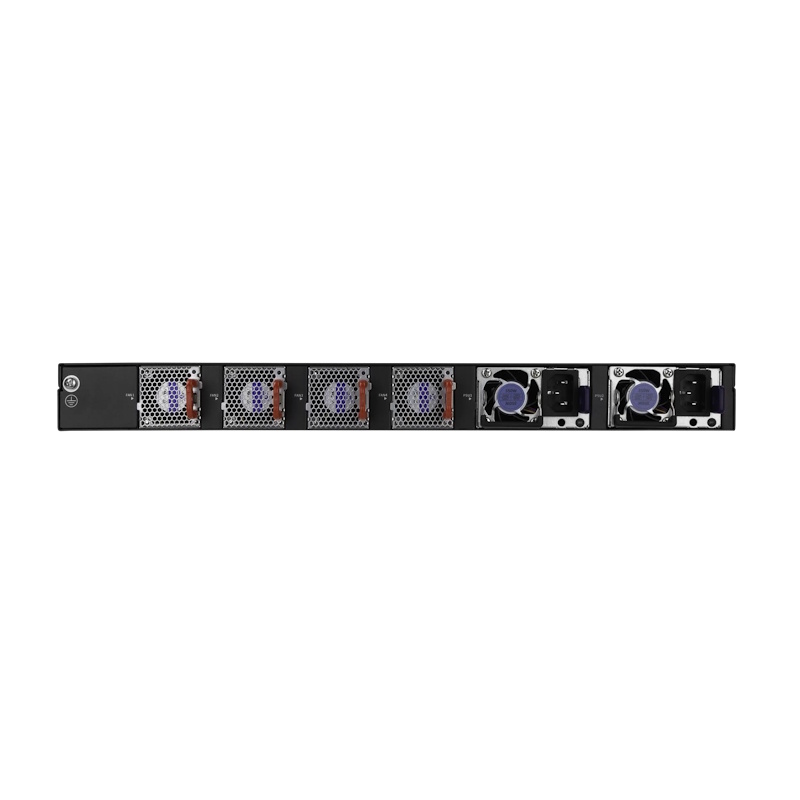

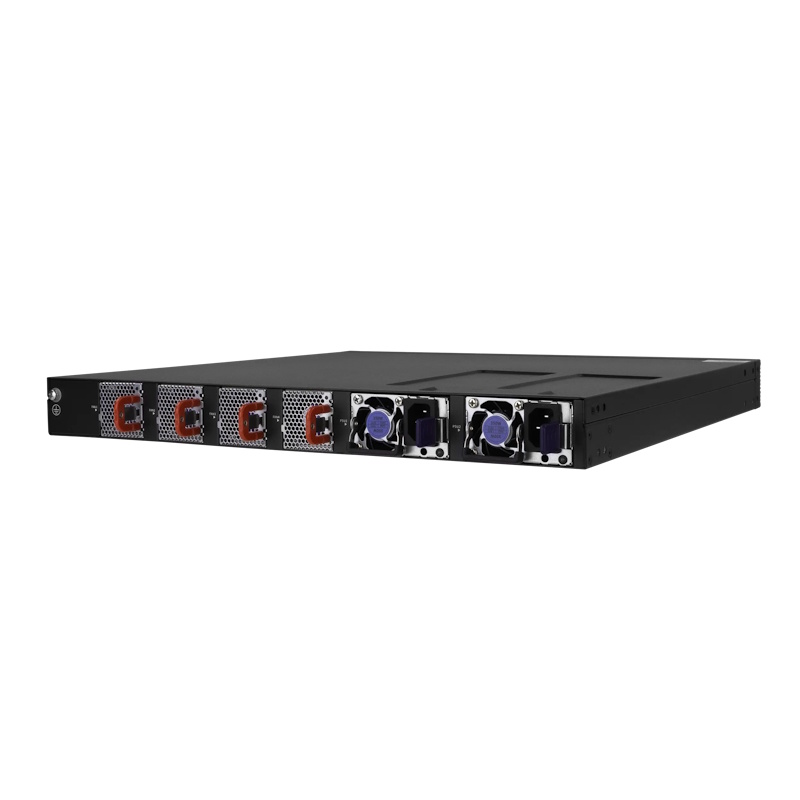

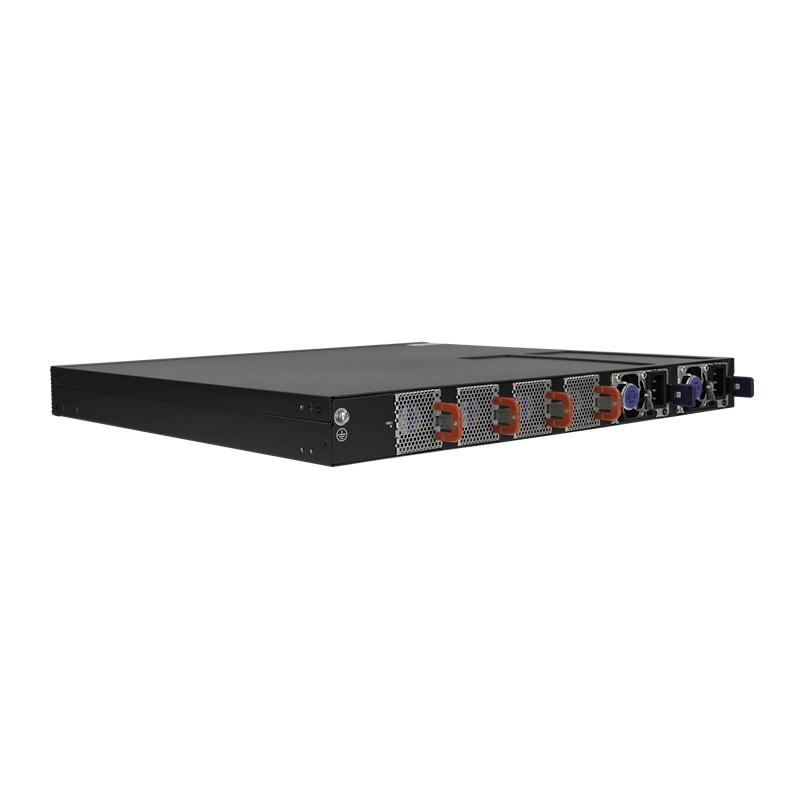

Ideal for enterprise, education, production, and government deployments, the SW24XF scales from a standalone core to a spine-connected edge switch beneath the SW32HF. Its 1RU rackmount design, hot-swappable PSUs, and redundant fans make it a reliable, serviceable choice for mission-critical AV-over-IP installations.

Key Benefits

24× 10G SFP+ Ports: Connect MXnet SDVoE encoders, decoders, and control devices across a single non-blocking fiber switching fabric.

6× 100G QSFP28 Ports: Enable high-speed stacking, backbone uplinks, or breakout to 4× 25G / 4× 10G for flexible multi-switch expansion.

Preconfigured for MXnet: Plug-and-play setup with VLAN, QoS, IGMP, and LAG optimized out of the box for SDVoE deployments.

Full L3 Switching Architecture: Delivers enterprise-grade routing with OSPF, BGP, MPLS, and VRF for AV-over-IP and IT network convergence.

Efficient Non-Blocking Stacking: 3× 100G ISL delivers full non-blocking dual-switch stacking (1.25× headroom), with 3x QSFP28 ports left over for additional endpoints or uplinking to another switch.

Edge-t o-Core Flexibility: Deploys as a standalone core, distribution switch, or edge switch beneath the SW32HF — no network redesign required.

1RU Rackmount Design: Clean, professional installation in AV racks and network closets with front-to-back airflow.
