Altelix Rack Mount Fan Tray with Four Thermostat Controlled Cooling Fans
The Altelix NHBS-RACK-ER1U-FB rack mounted 1U fan tray is designed to provide additional cooling to standard 19″ equipment racks and enclosures. Constructed from heavy duty 16 gauge steel, it features (4) thermostat controlled 80mm fans. These fans turn on when the internal temperature reaches 100°F (38°C) and turn off when it drops to 79°F (26°C). All four fans are pre-wired to a single 3 foot 120VAC power cord.
Two Configurations Available

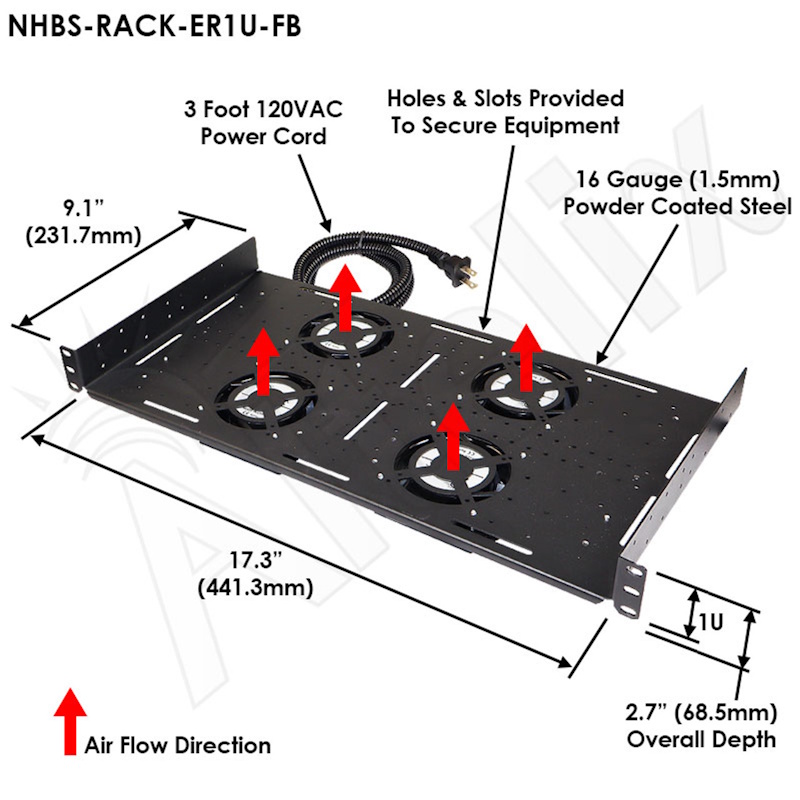

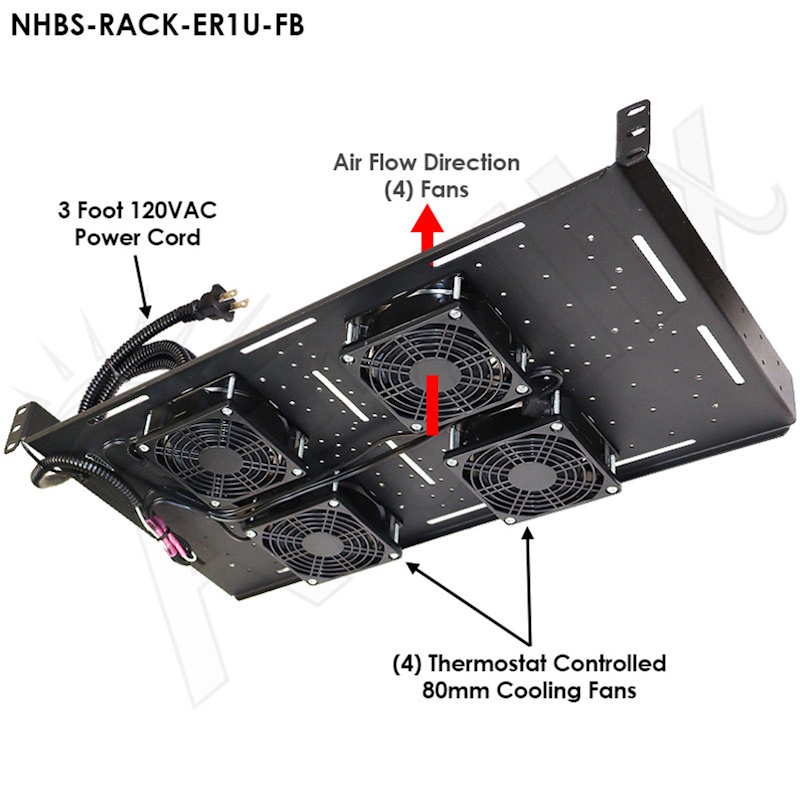

Ideal for mounting equipment directly to the tray, the NHBS-RACK-ER1U-FB features various holes as well as slots for use with hook-n-loop straps (not included).

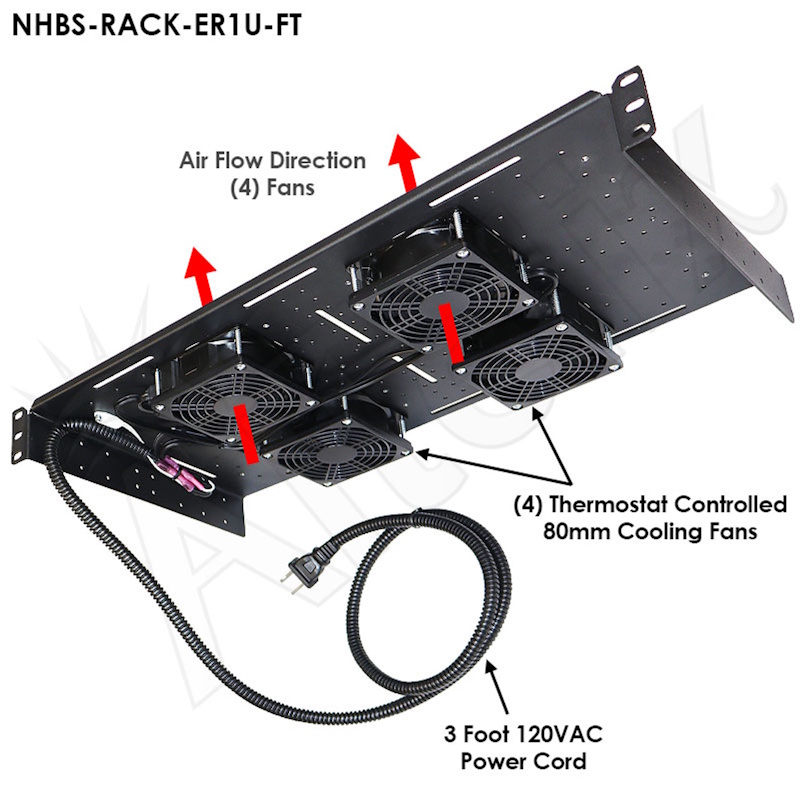

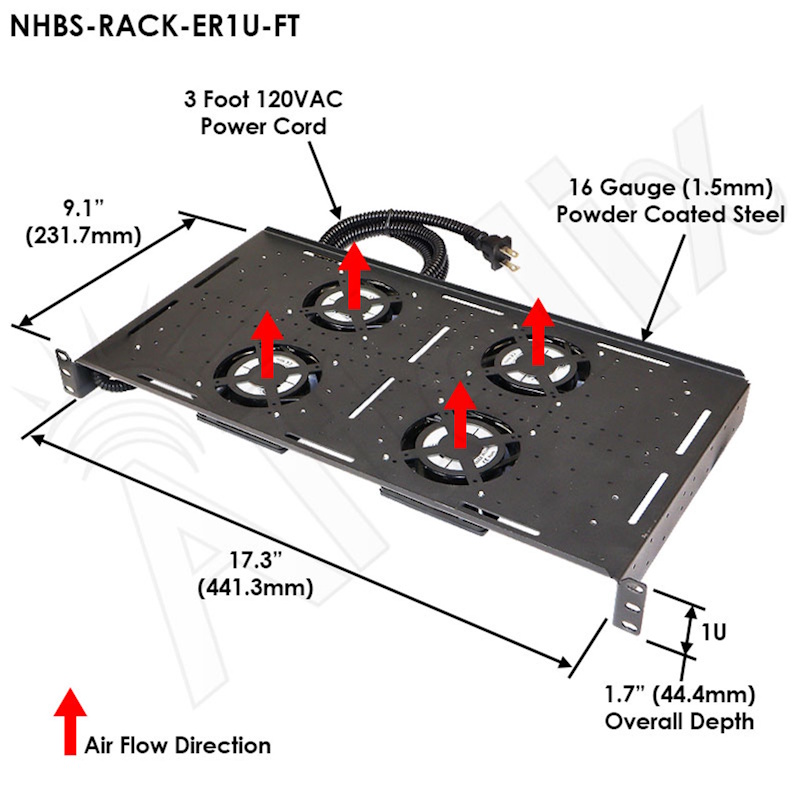

The NHBS-RACK-ER1U-FT is ideal for cooling only applications or installations with limited space. In this configuration the total depth of the tray is 1.7” (1U), so additional clearance for the fans is not required.
These fan trays can be used in any standard 19″ equipment rack as well as in any of the Altelix Equipment Rack Enclosures.
Features
- 16 gauge steel construction
- Black powder coat finish
- (4) Thermostat controlled cooling fans
- 3 Foot 120VAC power cord
- Slots and holes provided in tray to secure equipment
- 1U rack height
- Available in two configurations
Applications
- Add cooling fans to existing equipment racks
- Provide cooling for rack mounted equipment
- Altelix 19″ equipment rack enclosures
- Network equipment racks
- Audio/Video equipment racks
Technical Specifications
| Material | 16 Gauge (1.5 mm) Steel |
| Finish | Black Powder Coated |
| Voltage | 120VAC |
| Cooling Fan Turn-On Temperature | 100°F (38°C) ±6°F |
| Cooling Fan Turn-Off Temperature | 79°F (26°C) ±9°F |
| Power Cord Length | 3 Feet (0.9m) |
| NHBS-RACK-ER1U-FB Dimensions (Width x Depth x Overall Height) |
19 x 9.1 x 2.7 in. (482.6 x 231.1 x 69.8mm) |
| NHBS-RACK-ER1U-FT Dimensions (Width x Depth x Overall Height) |
19 x 9.1 x 1.7 in. (482.6 x 231.1 x 44.4mm) |
| Rack Unit Size | 1U |
| Weight Capacity | 75 lbs. (34.0 kg) |
| Fan Tray Weight | 4.7 lbs. (2.1 kg) |
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Fan Airflow | Airflow from Bottom of Rack Tray, Airflow Through Top of Rack Tray |
