The Altelix NMHX-600-16 Pole Mount Kit attaches to the rear of our NFC322412, NS242412, NS242416, NS242424, NS282412, NS282424 and NS322416 series NEMA enclosures. These heavy-duty stainless steel brackets allow the enclosures to be mounted to poles 1.7 to 16 inches (44.4 to 406.4mm) in diameter using the included heavy duty 304 stainless steel adjustable bands. The mounting bracket features multiple locations to thread the stainless steel bands so that small to large poles can be accommodated.

Heavy-Duty Construction

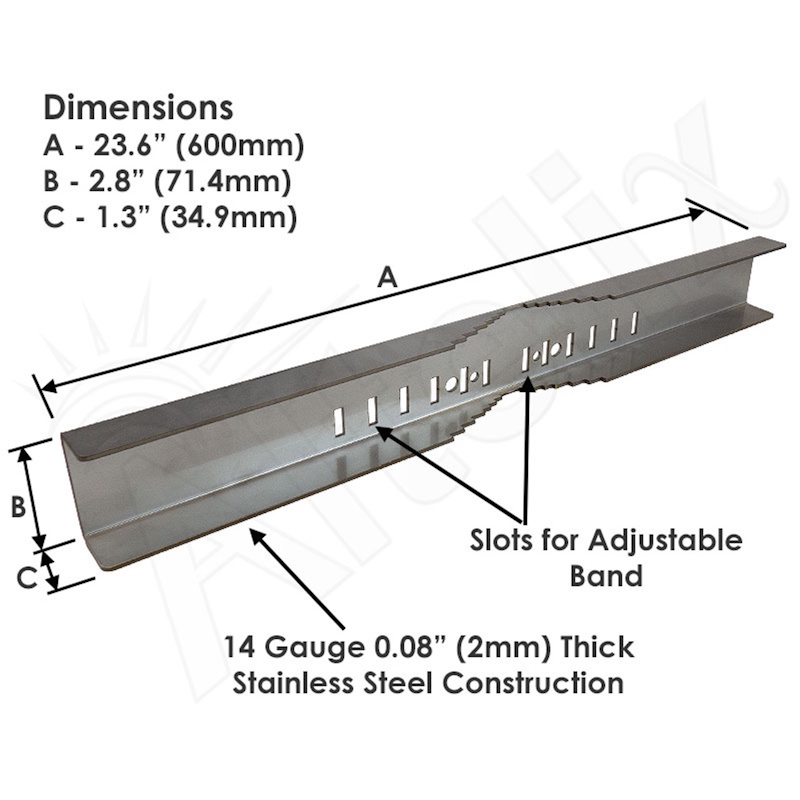

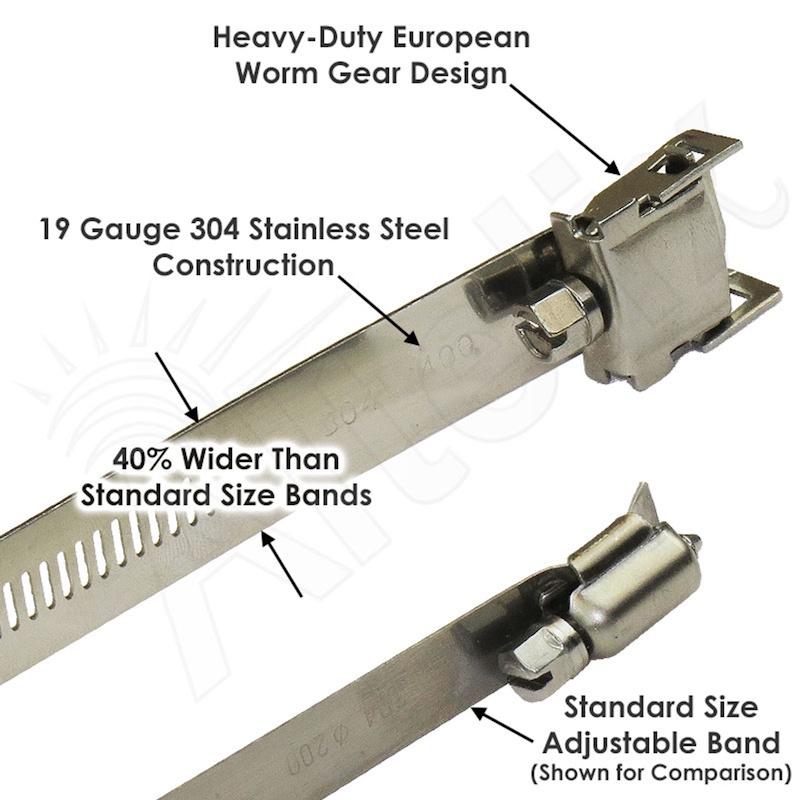

The NMHX series pole mounts kits are designed for rugged all weather installations. The (2) included mounting brackets are constructed from 14 gauge (0.08 inch thick) stainless steel. To mount to the pole this kit includes (2) heavy duty 19 gauge 304 stainless steel adjustable bands. 40% wider then standard adjustable bands, these 0.7 inch (18mm) wide bands feature a heavy-duty European worm gear design which is stronger than standard hose clamp gears.

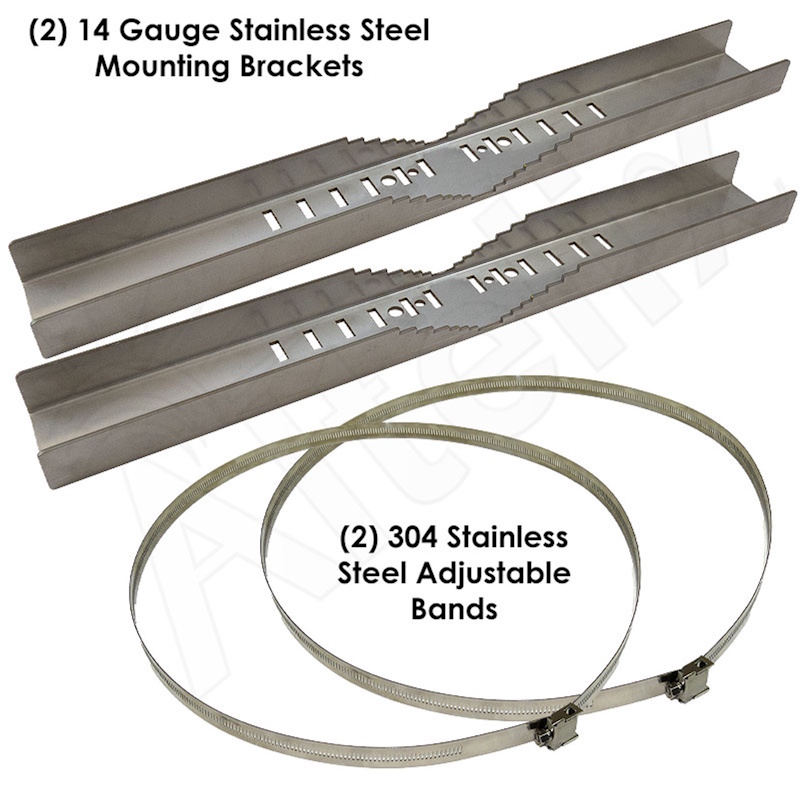

The NMHX-600-16 kit includes:

• (2) 14 gauge steel mounting brackets
• (2) 304 stainless steel adjustable 16″ diameter bands

The NMHX-600-16 is for use with the following enclosures:

• NFC322412 Series FRP Enclosures
• NS242412 Series Steel Enclosures
• NS242416 Series Steel Enclosures
• NS242424 Series Steel Enclosures
• NS282416 Series Steel Enclosures
• NS282424 Series Steel Enclosures
• NS322416 Series Steel Enclosures

Optional heavy duty adjustable stainless steel bands can also be purchased for the following pole sizes (see accessories when adding to cart):

• Heavy Duty Bands for Poles 1.7 to 8.0 inches (44.4 to 203.2mm) in diameter
• Heavy Duty Bands for Poles 1.7 to 12.0 inches (44.4 to 304.8mm) in diameter

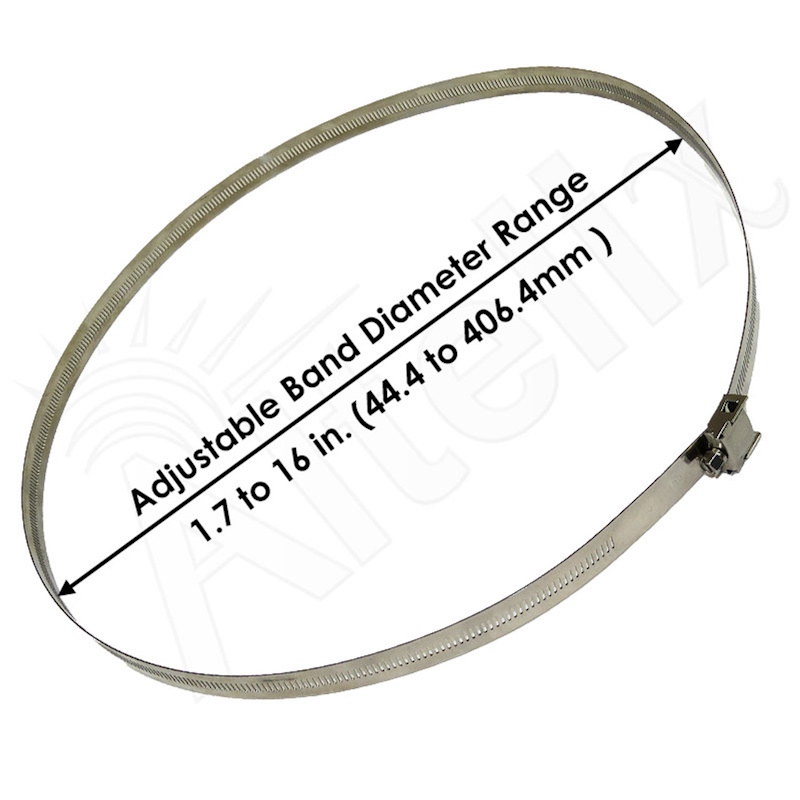

• Heavy Duty Bands for Poles 1.7 to 16.0 inches (44.4 to 406.4mm) in diameter
