ROBOfiber FC-1001-PSE – Gigabit Ethernet to 100/1000Base-X SFP Media Converter with PoE+ 30W
Unit Requires:
(1) 1GB single mode or multi mode SFP Module
Find them here
Product Information
Documents

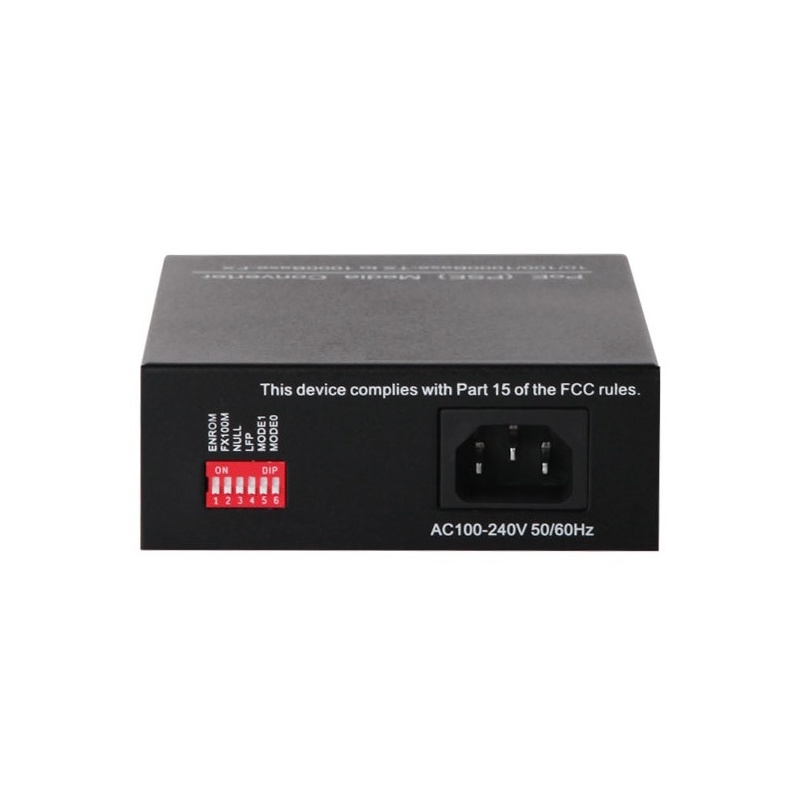

The FC-1001-PSE is a Gigabit Ethernet 10/100/1000Base-T to 100/1000Base-X non-managed stand-alone media converter, equipped with DIP switches for configuration options. The SFP slot allows both Gigabit and Fast Ethernet operation and can take any type of SFP: multi-mode, single-mode, CWDM or DWDM as well as BiDi which allows bi-directional transmissions using only a single fiber strand cable. DIP switches allow setting of fiber port speed, LFP function or transparent or switching converter mode. LED indicators signal the power status, UTP and FX ports speed and Link status of each port. A built-in optics SC based version
is also available.
Features
▪ 10/100/1000Base-T to 100/1000Base-X SFP Converter
▪ DIP settings for fiber speed, LFP funcions and PoE type
▪ Forward 2048 bytes (Max.) packets in switch mode
▪ Forward 9Kbytes Jumbo packets in transparent converter mode
▪ Auto-Negotiation & Auto MDI/MDI-X
▪ Supports Q in Q double tagged frame transparent
▪ Supports IEEE 802.1Q Tag VLAN pass thru
▪ Choice of SFP, SC, BiDi or other c onnectors for MMF and SMF
ssf-sfp-rj45poe
ssf-sfp-rj45
Additional information
Weight | 0.5 lbs |
---|---|
Dimensions | 3.5 × 3.5 × 3 in |
