FEATURES

• 3U BRUSH PANEL (MODEL CBP-3):
  • 18-gauge steel frame
  • Snap-in brush strip w/three sided steel frame
  • Black powder coat finish
  • EIA/TIA, TAA, BAA compliant
  • Made in the U.S.A. with U.S. steel

MODEL SPECIFIC OPTIONS

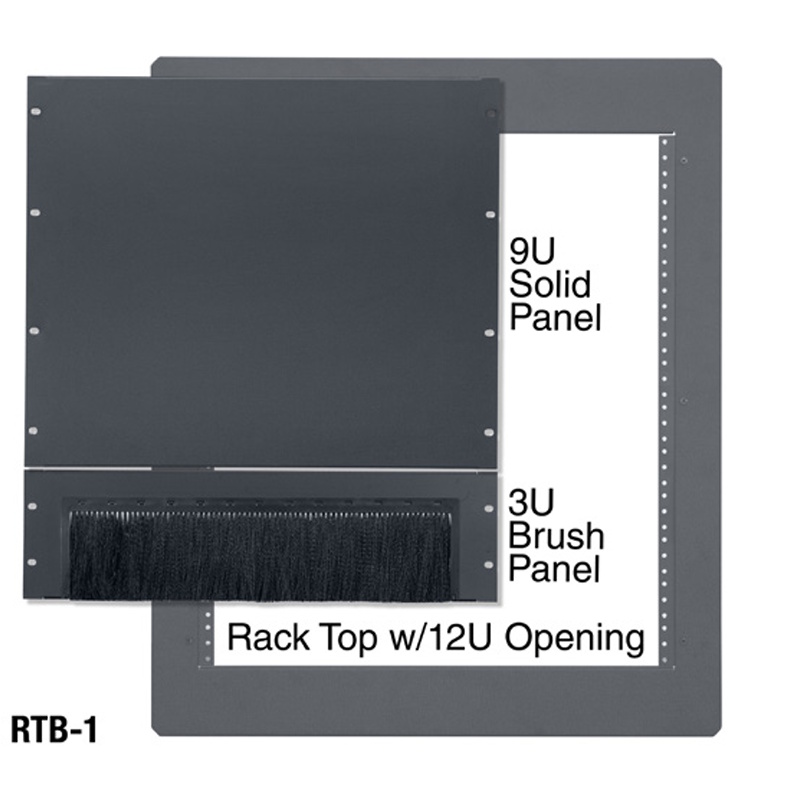

• RTB-1 [BRUSH + SOLID PANEL]:
  • 18-gauge solid steel panel
  • 19″W x 0.50″D x 9U
  • EIA/TIA, TAA, BAA compliant
  • Made in the U.S.A. with U.S. steel

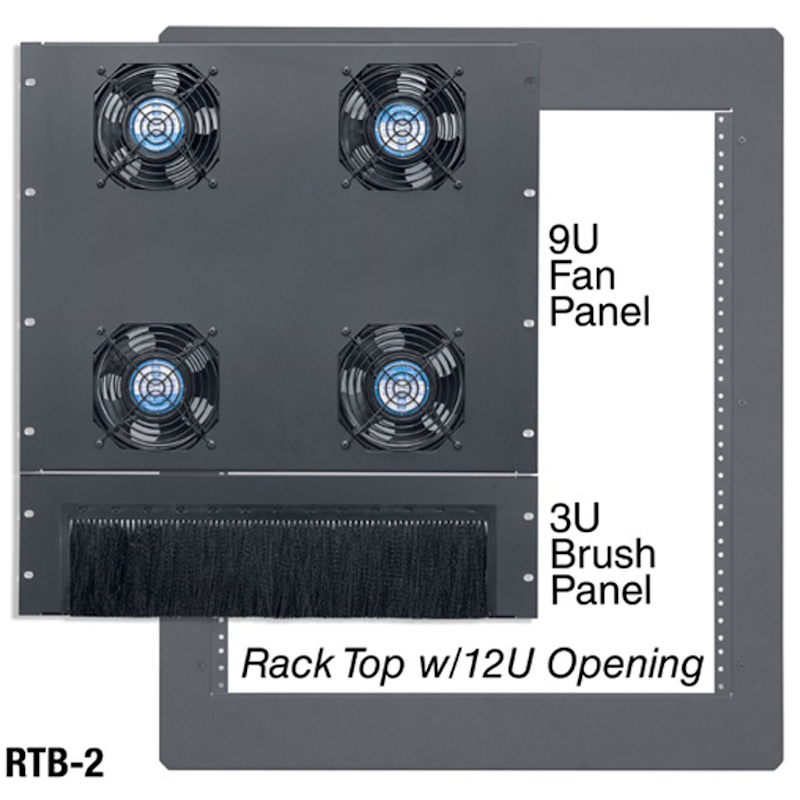

• RTB-2 [BRUSH + WHISPER FAN PANEL]:
  • 16-gauge steel panel
  • 19″W x 2″D x 9U
  • Four mounted fans with guards
    • 4.7″ fan diameter
    • 50 cfm airflow rating (per fan)
    • 28 dBA noise rating (per fan)
    • 5.5 watts power required (per fan)
  • 6-ft. green “thermo-cord” with integral thermostat probe to control fan operation – automatically turning on/off when ambient temperature hits pre-set points. Fan activates when temperature reaches 86˚F and deactivate when temperature reaches 72˚F
  • Fan Orientation: Exhaust* (pulls air out)
  • EIA/TIA compliant
  • Assembled in the U.S.A. with U.S. steel and global components

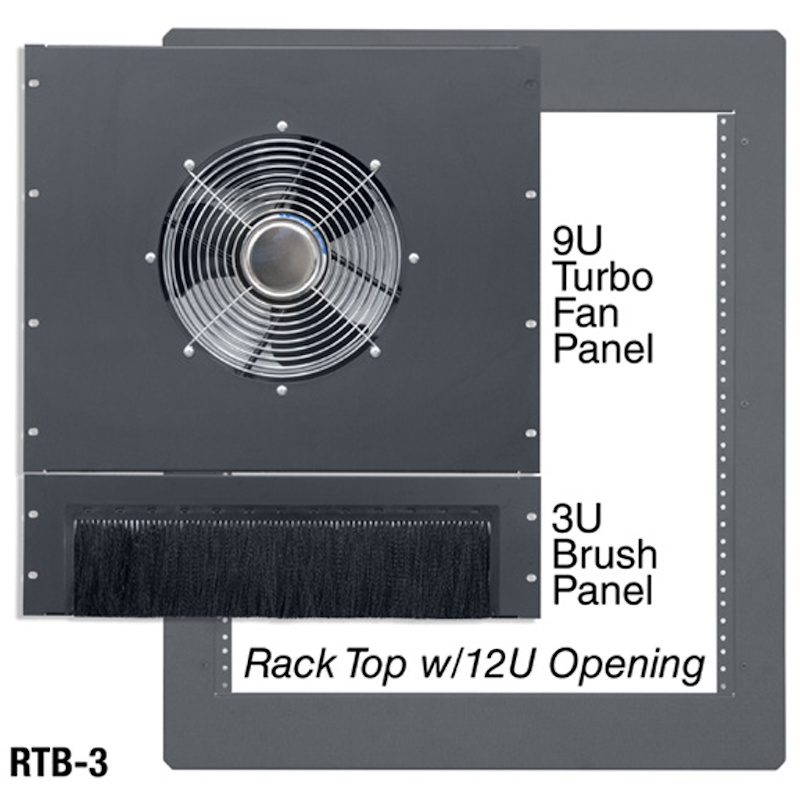

• RTB-3 [BRUSH + TURBO FAN PANEL]:
  • 16-gauge steel panel
  • 19″W x 4″D x 9U
  • Single mounted tubeaxial fan with guards
    • 10″ fan diameter – 550 cfm airflow rating– 50.8 dBA noise rating
    • 61 watts power required
    • Operates on 115 VAC 50/60 Hz
  • 6-ft. green “thermo-cord” with integral thermostat probe to control fan operation – automatically turning on/off when ambient temperature hits pre-set points. Fan activates when temperature reaches 86˚F and deactivate when temperature reaches 72˚F
  • Fan Orientation: Exhaust* (pulls air out)
  • EIA/TIA compliant
  • Assembled in the U.S.A. with U.S. steel and global components

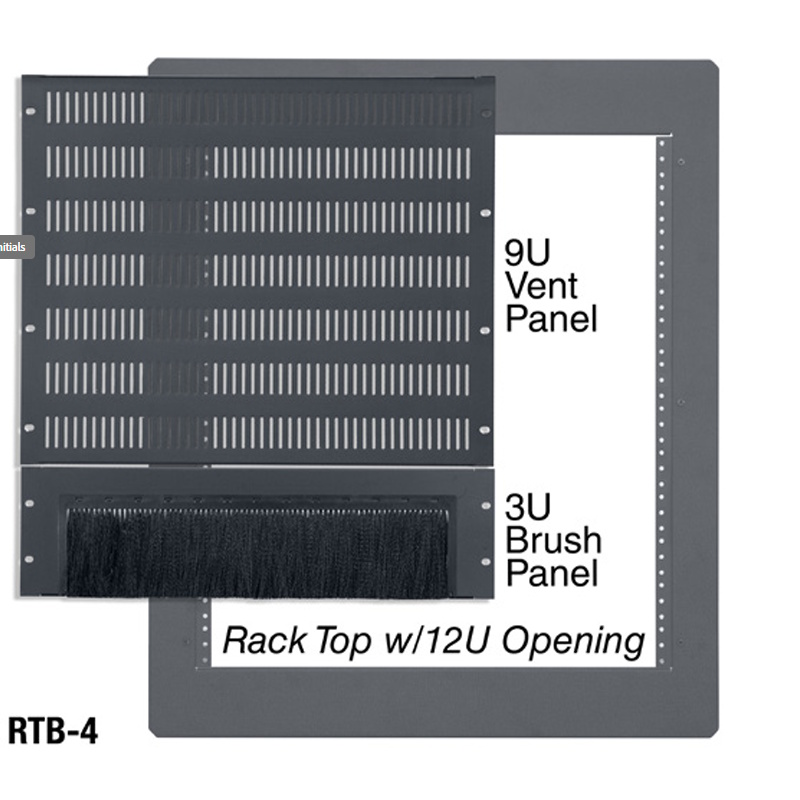

• RTB-4 [BRUSH + VENT PANEL]:
  • 18-gauge steel vent panel
  • 19″W x 0.50″D x 9U
  • EIA/TIA, TAA, BAA compliant
  • Made in the U.S.A. with U.S. steel
