Xtreme Power SPDU – IP-Enabled Switched & Metered-by-Outlet Power Distribution Unit
15A | 120VAC | TAA Compliant
Provides outlet-level control and metering to optimize rack performance, reduce downtime, and prevent costly service calls — fully TAA compliant for U.S. government, military, and public-sector applications.
Switched Power Distribution with Remote Monitoring and Control
The Xtreme Power SPDU (Switched Metered-by-Outlet PDU) delivers network-grade power distribution with real-time outlet-level monitoring and remote outlet switching for intelligent power management.
From AV installations and hospitality networks to network closets and edge IT sites, the SPDU provides complete control and visibility over every outlet — reducing service calls, improving uptime, and simplifying device management.
Product Overview
Monitor and manage connected devices anywhere via a secure web interface or SNMP.
Each outlet provides individual metering (wattage, kWh) and independent switching for remote reboot, load control, and energy optimization.
An interactive touch LCD displays outlet status, voltage, and temperature, while integrated sensors and event notifications (email / SMS) alert users to irregular power or environmental conditions.
A durable metal chassis and flexible mounting options (horizontal, vertical, wall, or desktop) make SPDU ideal for short-depth AV racks, network enclosures, and distributed installations.
Key Features
- TAA Compliant – Designed and manufactured for federal, military, and public-sector procurement.
- Switched Outlets – Remotely control or reboot locked-up devices; sequence outlets to manage inrush current.
- Metered-by-Outlet Monitoring – View real-time wattage and energy consumption for every outlet.
- Auto Reboot Function – Automatically ping and restart devices if network connectivity is lost.
- Programmable Voltage Protection – Set user-defined voltage limits to prevent damage from sags or surges.
- Temperature Monitoring – Track rack temperature in °C or °F via built-in sensor.
- Interactive Touch LCD – Displays load level, alarms, and outlet status at a glance.
- Gigabit RJ-45 Network Port – High-speed SNMP / web access for remote control and monitoring.
- Comprehensive Surge Protection – 1080 J suppression with programmable voltage limits.
- Flexible Mounting – Supports wall, desktop, and short-depth rack configurations.
- 6-ft Input Power Cord – Included for quick and convenient installation.
- 5-Year Warranty – Industry-leading coverage across the U.S. and Canada.
Available Models
SPDU-0615C
SPDU-1415C
| Model | Description | Mounting | Outlets |

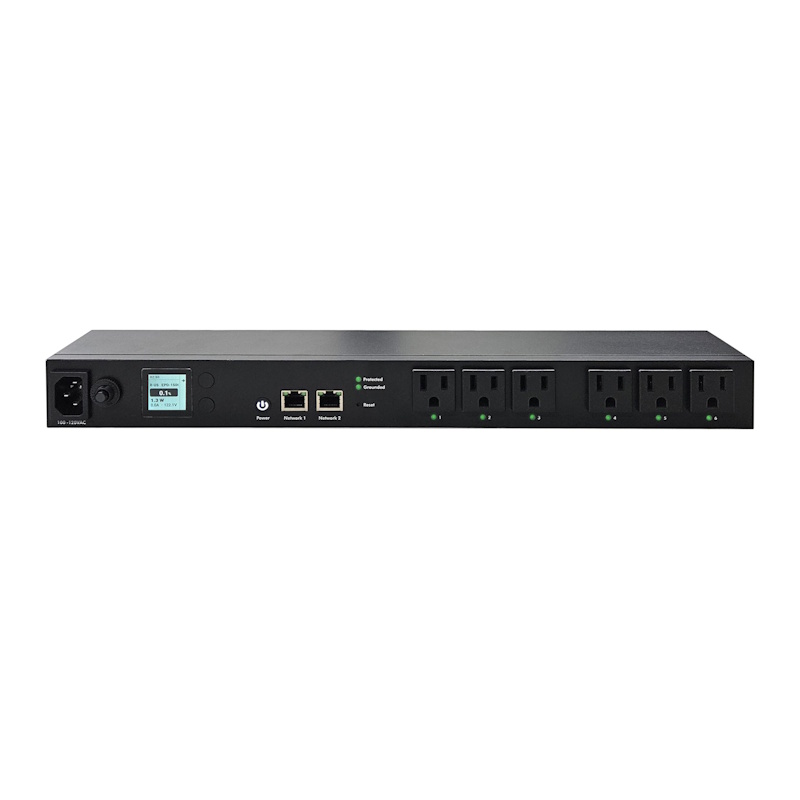

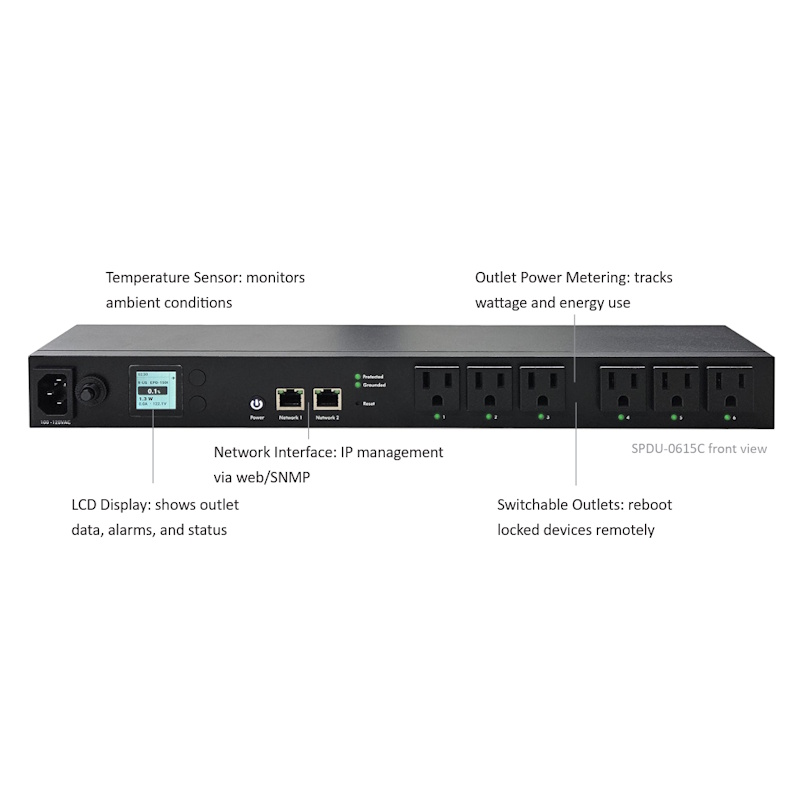

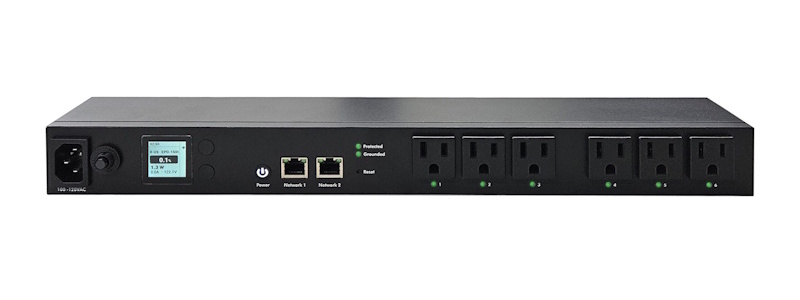

| SPDU-0615C | Short-depth switched PDU for AV racks and IT enclosures | 1U | 6 |

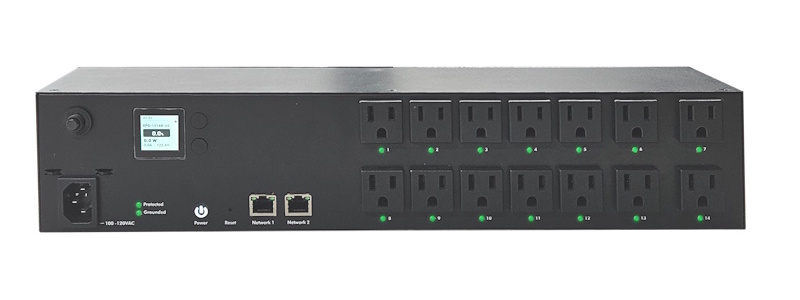

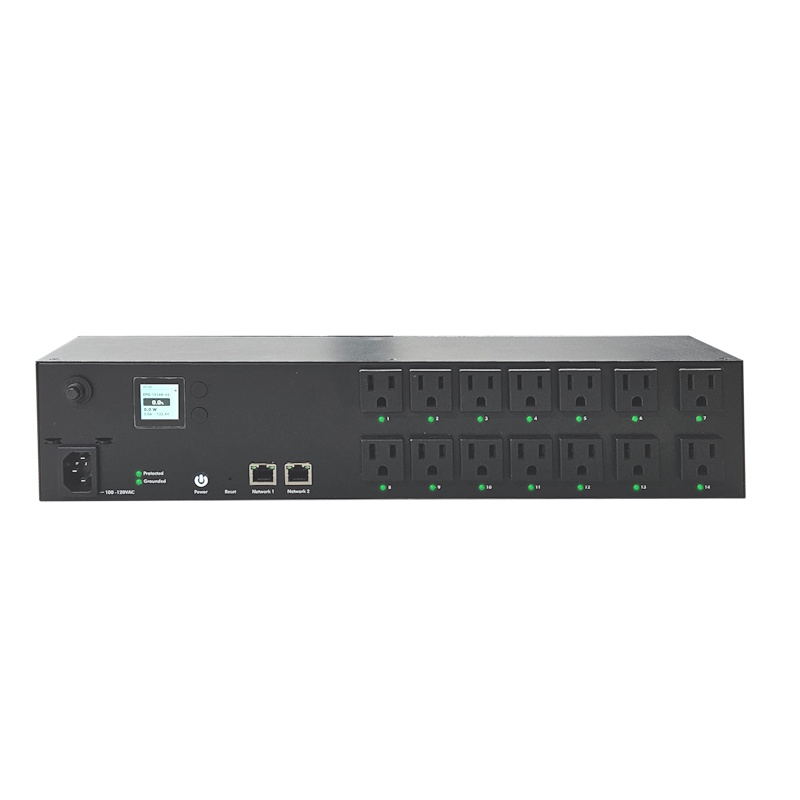

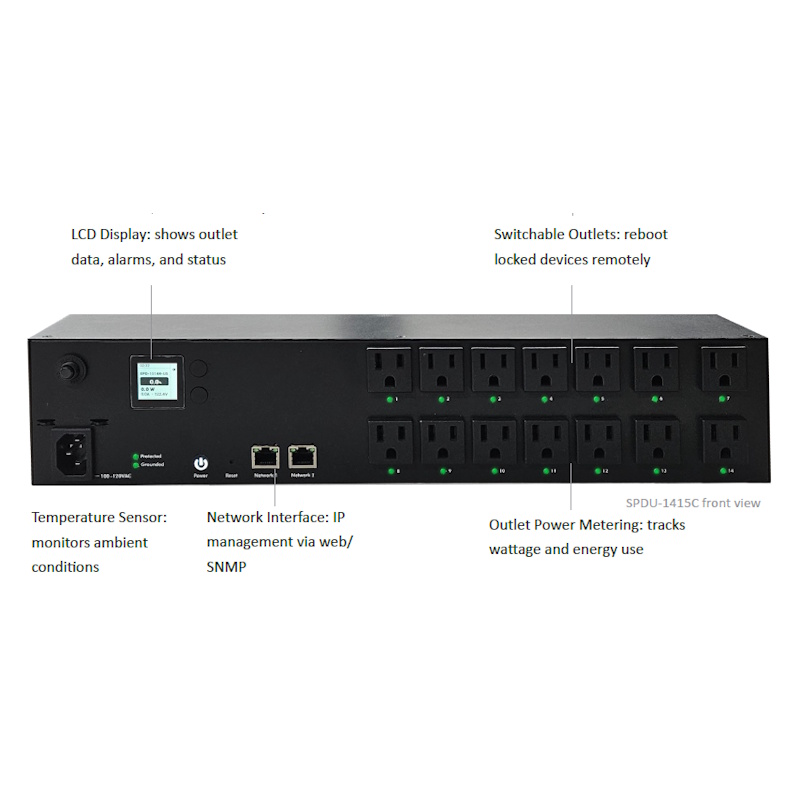

| SPDU-1415C | Full-rack version for larger installations or multiple device groups | 2U | 14 |
All models are IP-enabled, support web / SNMP management, and allow automated outlet-control scripting for advanced integration.
Applications
- Pro AV Systems – Reboot displays, amplifiers, and controllers remotely for 24 / 7 uptime.
- Home Automation & CEDIA – Manage lighting controllers, processors, and smart hubs without on-site service.
- Hospitality & Retail – Centrally monitor signage, kiosks, and POS terminals across multiple properties.
- Restaurants & Convenience Stores – Protect Wi-Fi, POS, and refrigeration systems from downtime.
- Edge IT & Remote Facilities – Enable unattended reboot and monitoring of distributed systems.
- Smart PDUs & Integration – Combine with other Xtreme Power PDUs for complete rack-level management.
Technical Highlights
| Feature | Description |
| Form Factor | 1U (6-outlet) and 2U (14-outlet) |
| Input Voltage | 120 V AC |
| Outlet Type | NEMA 5-15 / 20R |
| Network Port | Gigabit RJ-45 |
| Operating Temperature | Up to 50 °C (122 °F) |
| Input Power Cord | 6 ft (included) |
| Mounting Options | Wall, desktop, or short-depth rack |
| Warranty | 5 Years (USA & Canada) |
| Compliance | TAA Compliant |
Why Choose Xtreme Power
- U.S.-based engineering and support
- Trade Agreements Act (TAA) compliant manufacturing
- Reliable, network-ready power control for IT, AV, and industrial systems
- Long-term product availability and support lifecycle
- Backed by 5-year warranty and local technical service
