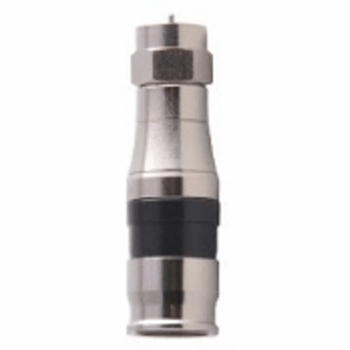

Belden DB59U-25 – Double Bubble RG-59 “F” Coax Compression Connector

Belden DB59U-25 – Double Bubble RG-59 “F” Coax Compression Connector

SPECIAL CLEARANCE SALE PRICING

Quantities are limited – Prices already marked down.

Product Information

Product Overview

Suitable Applications: CCTV, Security Cameras, Video

Physical Characteristics (Overall)

Packaging: 25 Pack
Number of Pieces: 1

Connectors

Materials
Material
Nickel plated Brass
Gold Plated

Electrical Characteristics

Impedance
Nominal Characteristic Impedance
75 Ohms
Return Loss (RL)
Frequency [MHz]
DC-1 GHz 30 dB Return Loss 1.07 VSWR
DC-2 GHz 30 dB Return Loss 1.10 VSWR
DC-3 GHz 30 dB Return Loss 1.16 VSWR

Mechanical Characteristics

Footprint/Type: Coax
Connector Interface Type: BNC
Gender: Male – plug
Connector Series Name: Double Bubble
Locking: No
Tool Compatibility: CPLCRBC-BR (compression), PS59/6/RGB (strip)
Termination Type: Compression
Cable Center Conductor Diameter Limits: .0317 – .0339 inch
Cable Dielectric Diameter Limits: .144 – .157 inch
Cable Outer Jacket Diameter Limits: .232 – .273 inch

Standards

RG Type: 59/U Type
Series Type: 59/U

Applicable Environmental and Other Programs

EU CE Mark: Yes

Suitability

Suitability – Indoor: Yes

Part Number

Variants
Item # Color UPC
DB59U-25 No Color 845671004717
Patent: https://www.belden.com/resources/patents

History

Update and Revision: Revision Number: 0.37 Revision Date: 01-31-2020

Additional information

Weight 0.7 lbs
Dimensions 9 × 5 × 0.5 in
Connector Type

Cable Type

PVC-coated Products; PVC-coated Wires and Cables
