Altelix Pole Heavy Duty Stainless Steel Pole Mount Kit for Altelix NF201612, NFC161608, NFC201608, NFC241609, NS/NX161608, NS201608, NS/NX201612, NS241610 & NS241612 Series NEMA Enclosures

Altelix Pole Heavy Duty Stainless Steel Pole Mount Kit for Altelix NF201612, NFC161608, NFC201608, NFC241609, NS/NX161608, NS201608, NS/NX201612, NS241610 & NS241612 Series NEMA Enclosures

Availability: In Stock
SKU: ALT.NMHX40016

Product Information

Documents

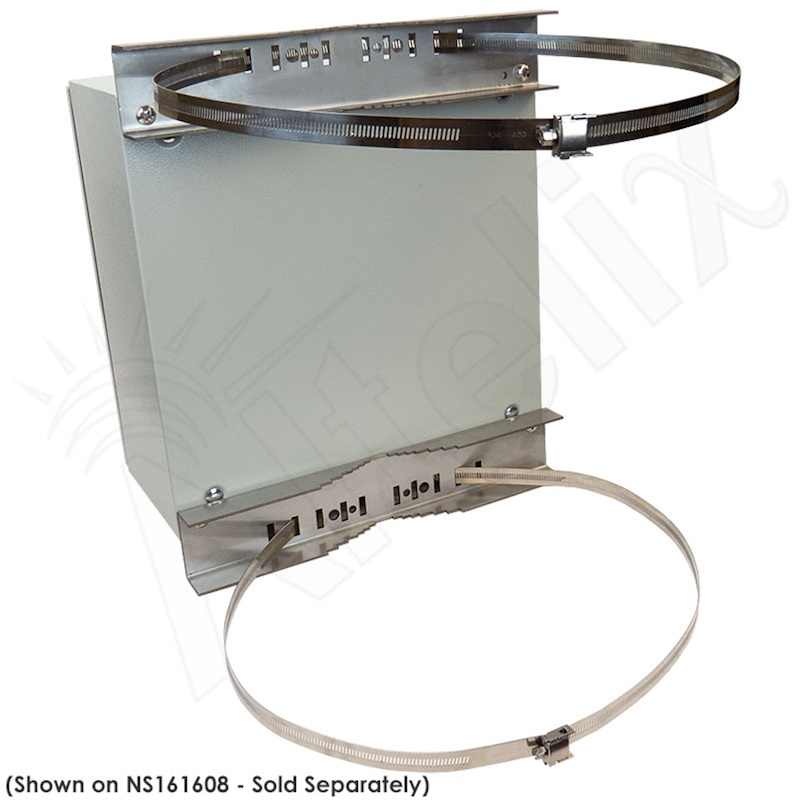

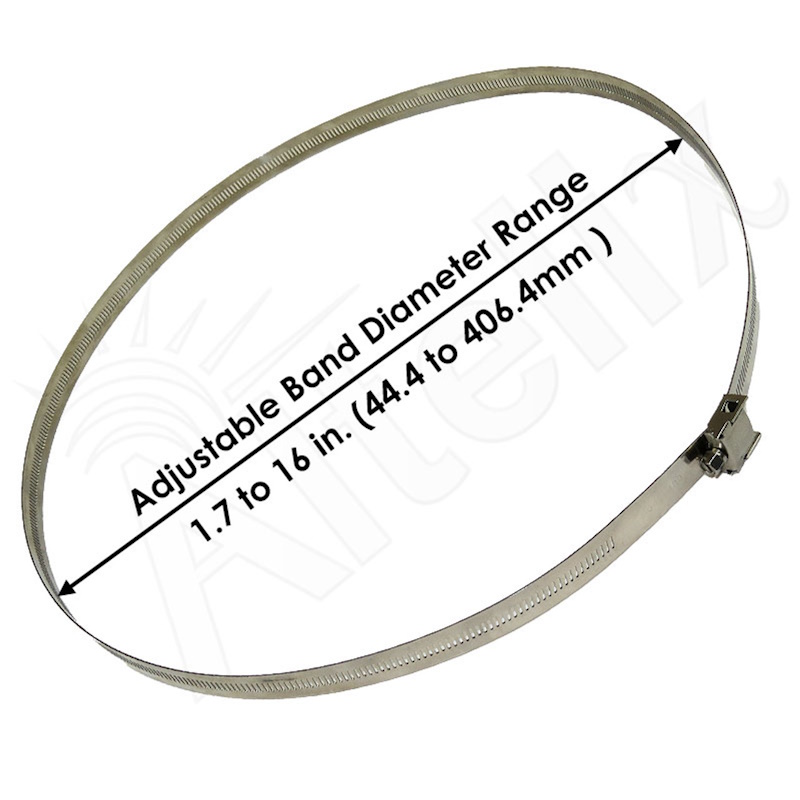

The Altelix NMHK-400-16 Pole Mount Kit attaches to the rear of the Altelix NFC, NS and NX series NEMA enclosures. These heavy-duty stainless steel brackets allow the enclosures to be mounted to poles 1.7 to 16 inches (44.4 to 406.4mm) in diameter using the included heavy duty 304 stainless steel adjustable bands. The mounting bracket features multiple locations to thread the stainless steel bands so that small to large poles can be accommodated.

Heavy-Duty Construction

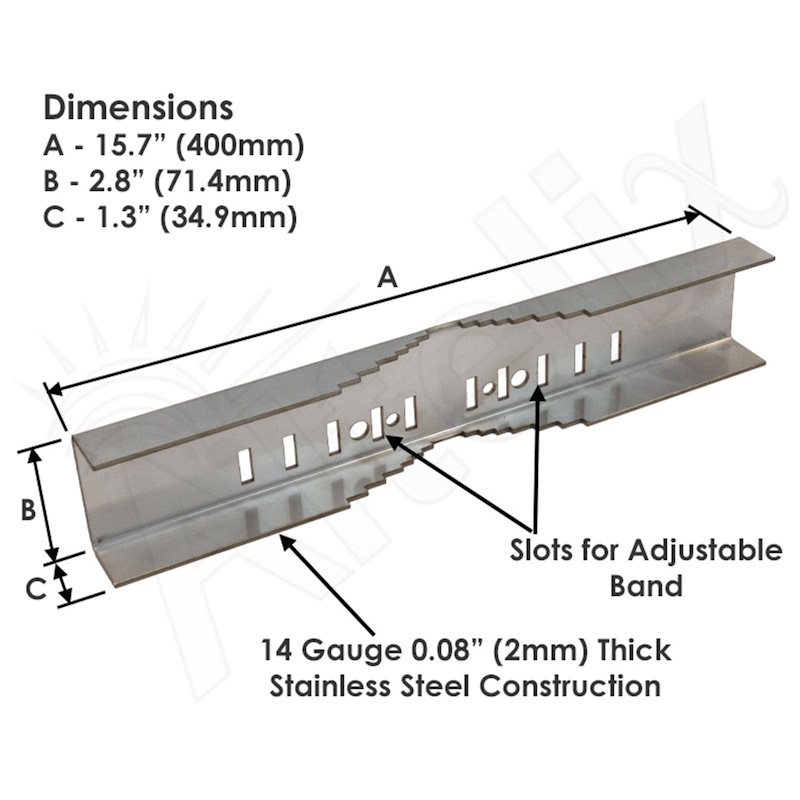

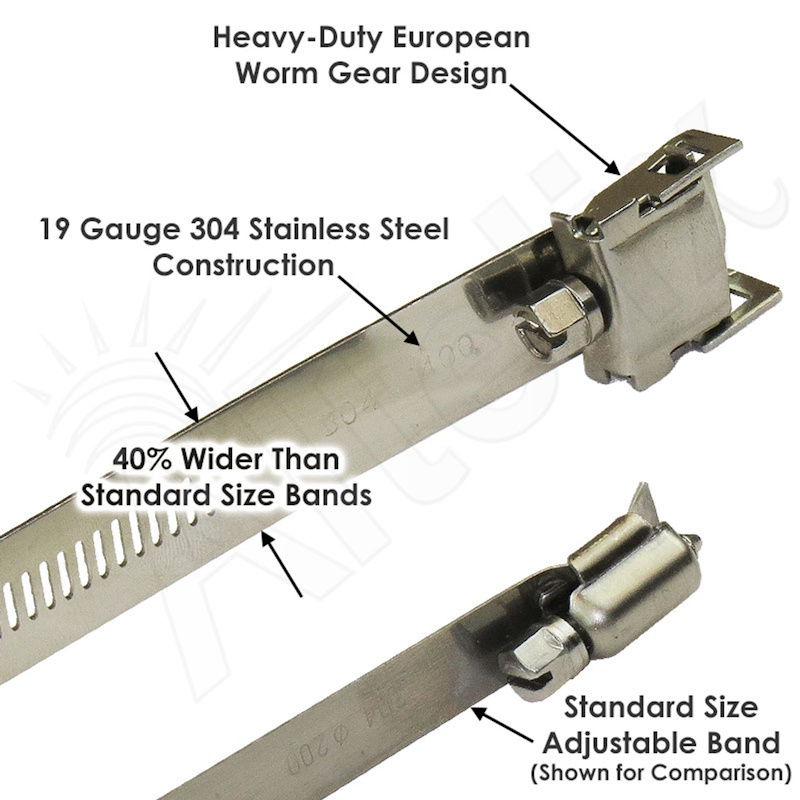

The NMHX series pole mounts kits are designed for rugged all weather installations. The (2) included mounting brackets are constructed from 14 gauge (0.08 inch thick) stainless steel. To mount to the pole this kit includes (2) heavy duty 19 gauge 304 stainless steel adjustable bands. 40% wider then standard adjustable bands, these 0.7 inch (18mm) wide bands feature a heavy-duty European worm gear design which is stronger than standard hose clamp gears.

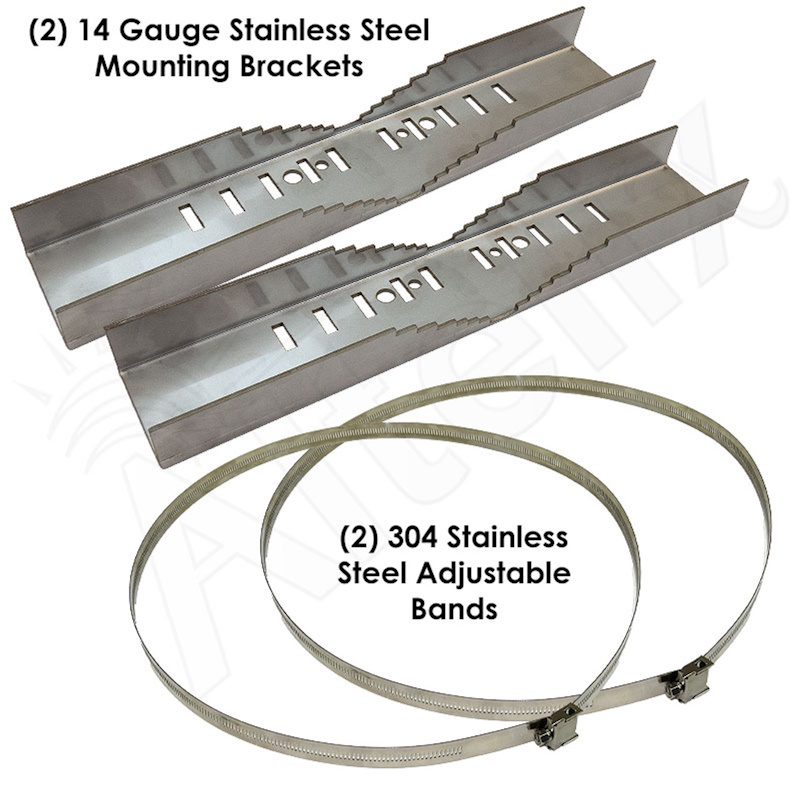

The NMHX-400-16 kit includes:

  • (2) 14 gauge stainless steel mounting brackets
  • (2) 304 stainless steel adjustable 16″ diameter bands

The NMHX-400-16 is for use with the following enclosures:

  • NF201612 Series FRP Enclosures
  • NFC161608 Series FRP Enclosures
  • NFC201608 Series FRP Enclosures
  • NFC241609 Series FRP Enclosures
  • NS161608 Series Steel Enclosures
  • NX161608 Series Stainless Steel Enclosures
  • NS201608 Series Steel Enclosures
  • NS201612 Series Steel Enclosures
  • NX201612 Series Stainless Steel Enclosures
  • NS241610 Series Steel Enclosures
  • NS241612 Series Steel Enclosures

Additional information

Weight 5 lbs
Dimensions 12 × 10 × 6 in
