Details

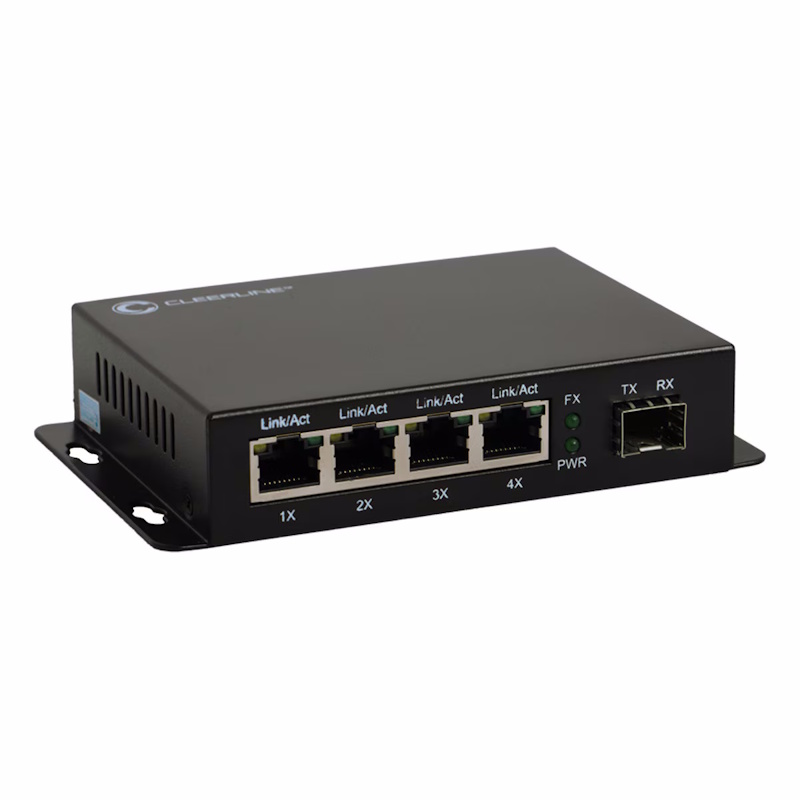

The SSF-1SFPx4RJ45POE-1G is a 100/1000Base-X to Gigabit Ethernet 10/100/1000Base-T non-managed switch providing a solution to your endpoint devices. The SFP slot allows both Gigabit and Fast Ethernet operation and can accept all SFP types, including Multimode, Single-mode, CWDM, DWDM, or BiDi.

In addition, the PoE+ switch automatically determines PoE+ requirements, speed, duplex, and cable type using Auto Uplink Easy to operate and reliable. This switch also features slimline housing with built in mounting brackets simplifying installation in tight spaces such as behind TV’s, work areas, or other applications.

FEATURES AND BENEFITS

• 4*10/100/1000mbps RJ45 PoE port, UP-Link 1*1000mbps SFP port
• Compatible with IEEE802.3AF/AT
• Input Power: DC 48-52V 1.25A
• All port supported by MDI/MDIX auto flip and self-negotiation
• Supply 4 each 10/100/1000Mpbs adaptive high speed forwarding data packet non-lost port.
• Low heat design, safe and reliable, high stability
• Max port power 30W/2 PoE+, 15W/4 PoE
