LightSpeed FTTX-K20 FTTX Fiber Networking Kits
The FTTX-K20 Series manages broadband, network, and audio-visual fiber connections in single, easy-to-install enclosures.
– Outdoor enclosure features cable management plus your choices LGX adapter plates with single mode, multi mode, and hybrid connectivity
– Indoor enclosure matches the outdoor enclosure, delivering multiple fiber paths and connections for a wide variety of equipment
Product Information
Introduction
The FTTX-K20 Series from LightSpeed Technologies® is an affordable, easy-to-install package that streamlines fiber-to-the-home and business. The kit includes two enclosures designed to simultaneously route and manage broadband, network, and/or audio-visual fiber connections from an outdoor location to an indoor demarcation point
Unlike other demarcation wiring systems that are specific to broadband, networking or audio/video, the FTTX-K20 includes a choice of single mode duplex LC adapter plates; multi mode LC multi mode adapter plates; on innovative hybrid adapter plates that manage single mode SC/APC connections (typically broadband), single mode LC connections (typically long-range networking and AV), and multimode LC connections (typically short-range networking and AV) in a single enclosure. For added versatility, the FTTX-K20 Series conforms to LGX standards, allowing integrators to quickly and easily customize fiber optic connections using off-the-shelf components.
Installing the FTTX-K20 system is easy: simply mount the outdoor enclosure, mount the indoor enclosure, run and connect a compatible fiber optic cable between the two enclosures, and plug-in the broadband, networking, and/or audio-visual equipment. If needed, LightSpeed Technologies® offers a variety of factory-terminated fiber optic cables built in various lengths and configurations.
To future-proof installations, both the outdoor and indoor FTTX-K20 enclosures feature built-in cable management, cable coiling, and multiple entry and exit points to accommodate extra fiber optic cable for service loops, repairs and retrofits.
The FTTX-K20 kit is ideal for residential and commercial installations where affordable, quick, consistent, reliable, and aesthetically pleasing fiber optic connections are required.
Product Snapshot
-
FTTx demarcation wiring package including two enclosures with (2) LC12 single mode adapter plates; (2) LC12 multimode adapter plates; or (2) hybrid LGX panels
-
Ideal for routing broadband, networking and/or audio-visual fiber-based signals between indoor and outdoor locations
-
LGX adapter plates are swappable and follow industry standards, allowing for quick customizations in the field
-
Enclosures are outdoor-rated for exposure to water and UV
-
Enclosures feature cable management and multiple entry / exit points supporting conduit connections up to 1 inch in diameter
Configuration of the Hybrid Adapter Plates
A fully populated FTTX K20 Kit with Hybrid adapter plates requires a minimum of ten strands of fiber (twelve strands recommended in the following cable configuration:
Connection |
Cable Type |
Indoor Enclosure Connector |
Outdoor Enclosure Connector |
Typical Use |
Cable 1 |
Single Mode |
SC/APC |
SC/APC |
Broadband |
Cable 2 |
Single Mode |
SC/APC |
SC/APC |
Broadband |
Cable 3 |
Single Mode |
LC/UPC (standard LC) |
LC/UPC (standard LC) |
Networking & AV |
Cable 4 |
Single Mode |
LC/UPC (standard LC) |
LC/UPC (standard LC) |
Networking & AV |
Cable 5 |
Single Mode |
LC/UPC (standard LC) |
LC/UPC (standard LC) |
Networking & AV |
Cable 6 |
Single Mode |
LC/UPC (standard LC) |
LC/UPC (standard LC) |
Networking & AV |
Cable 7 |
Multimode |
LC/UPC (standard LC) |
LC/UPC (standard LC) |
Networking & AV |
Cable 8 |
Multimode |
LC/UPC (standard LC) |
LC/UPC (standard LC) |
Networking & AV |
Cable 9 |
Multimode |
LC/UPC (standard LC) |
LC/UPC (standard LC) |
Networking & AV |
Cable 10 |
Multimode |
LC/UPC (standard LC) |
LC/UPC (standard LC) |
Networking & AV |
* LightSpeed Technologies® recommends adding at least 10 feet of extra cable length to all interconnect cables. |
Additional information
Weight | 5 lbs |
---|---|
Dimensions | 16 × 12 × 6 in |

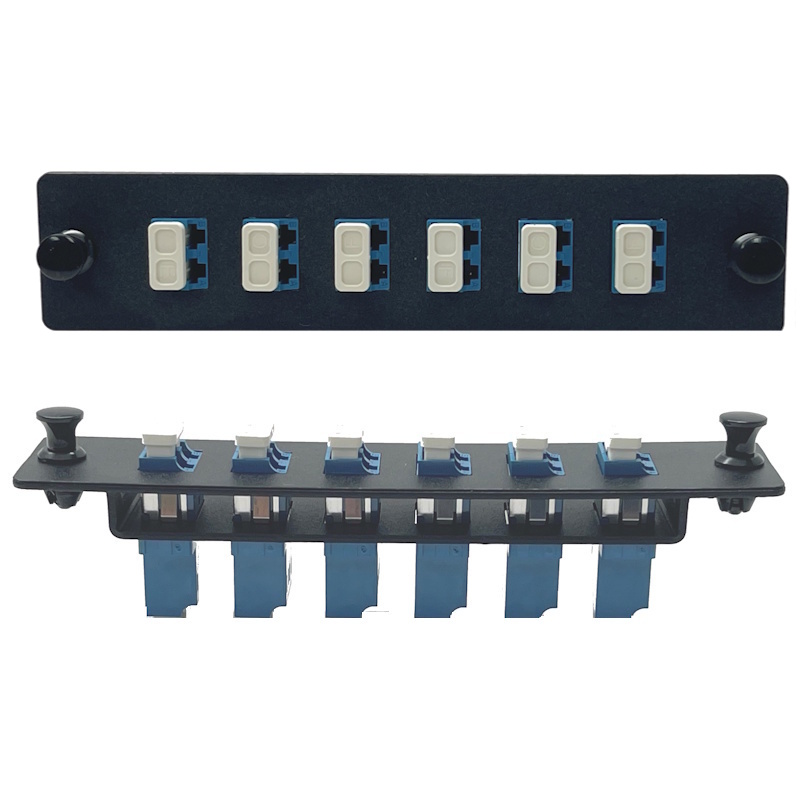

Adapter Plates | LGX Adapter Plate with (6) Duplex LC Single Mode couplers, LGX Adapter Plate with (6) Duplex LC Multi Mode couplers, LGX Hybrid Adapter Plate with (2) Simplex SM-APC; (2) Duplex MM LC; and (2) Duplex MM LC Couplers |
