High Quality & Cost-Effective Fiber Optic Patch Cables

These 9/125μm OS2 singlemode bend insensitive fiber optic cables offers less attenuation when bent or twisted compared with traditional optical fiber cables making the installation and maintenance of fiber optic cables more efficient. Small, 2.0mm cable size provides more space for high density cabling wherever fiber patch cables are needed.

Ideal for connecting 1G/ 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications.

Physical Characteristics

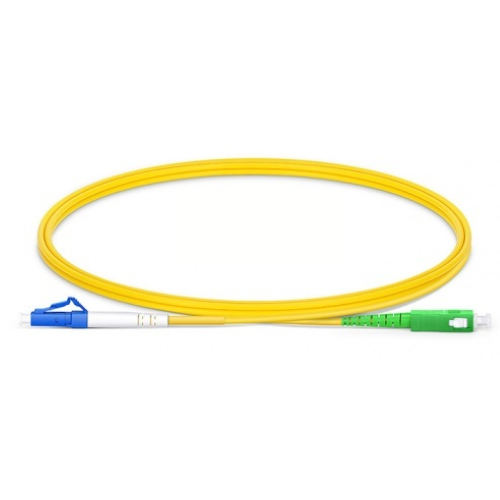

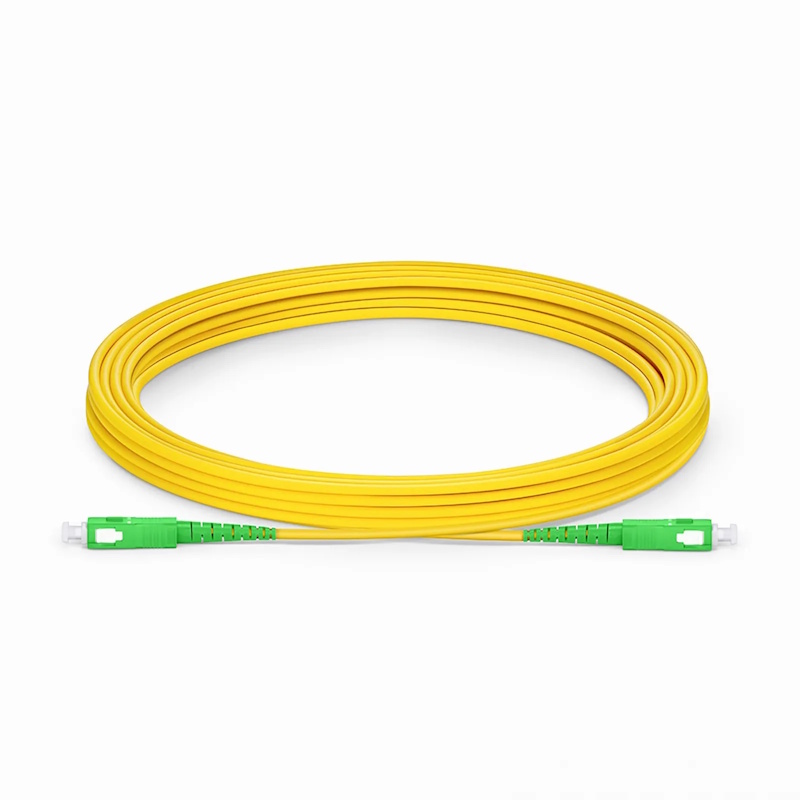

• Connector Types – Available in 3 configurations – LC/LC, SC/SC, and LC/SC
• Polish Type – UPC to UPC
• Connector Ferrule – Zirconia Ceramic
• Fiber Count – Available in Duplex and Simplex Fiber Count
• Fiber Grade – Bend Insensitive
• Cable Jacket – PVC – OFNR
• Jacket Color – Yellow
• Minimum Bend Radius – 7.5mm
• Cable Outside Diameter – 2.0mm
• Polarity – A (Tx) – B (Rx)

Optical Characteristics

• Fiber Mode – OS2 9/125
• Wavelength – 850 / 1300 nm
• Insertion Loss – ≤0.3dB
• Return Loss – ≥20dB
• Attenuation at 850nm – 3.0db /km
• Attenuation at 1300nm – 1.0dB /km
• 40G Ethernet Distance – 150m at 850 nm
• 100G Ethernet Distance – 100m at 850 nm

Environmental Characteristics

• Operating Temperature – (-20 to +80° C)
• Storage Temperature – (-40 to +80° C)
