The Kordz ONEv2 HDMI Cable is the professional grade passive HDMI cable designed to provide reliable, economical, uncompressed 4K connectivity for high volume commercial integration projects. It delivers full 18Gbps performance at every length up to 5m. Its slim, flexible, fire-rated PVC jacket and compact connector ensure durability, easy routing and secure connections, even in tight spaces. Supplied in eco-friendly recyclable paper packaging, the ONEv2 HDMI Cable is quick to open, easy to clean up, and comes backed by the Kordz lifetime warranty for peace of mind.
Product outline
- Full 18Gbps bandwidth for reliable uncompressed 4K signal at all lengths up to 5m

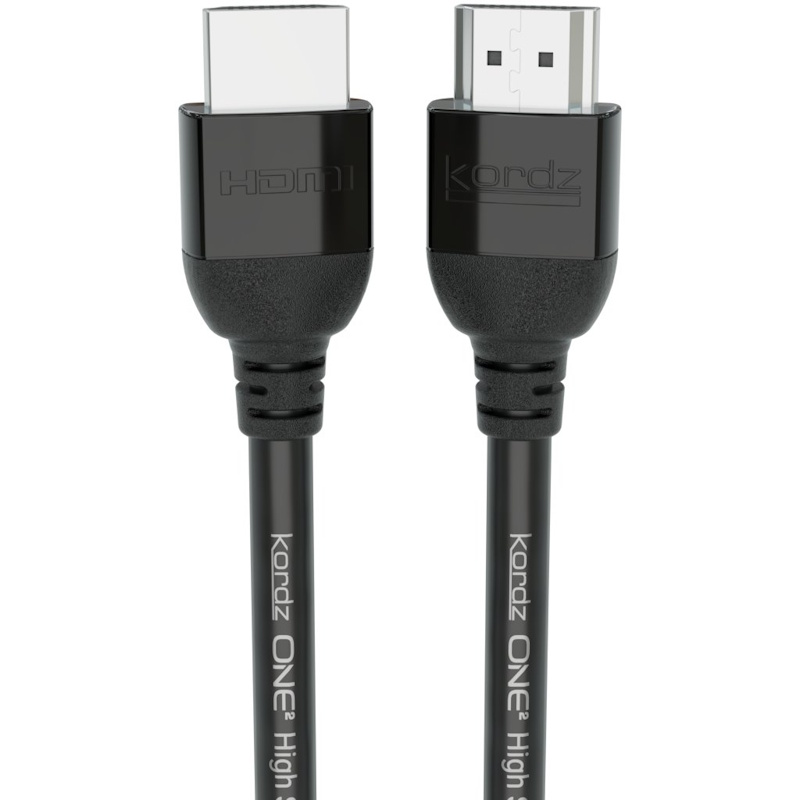

- Compact connector assembly rated for 1kg retention force

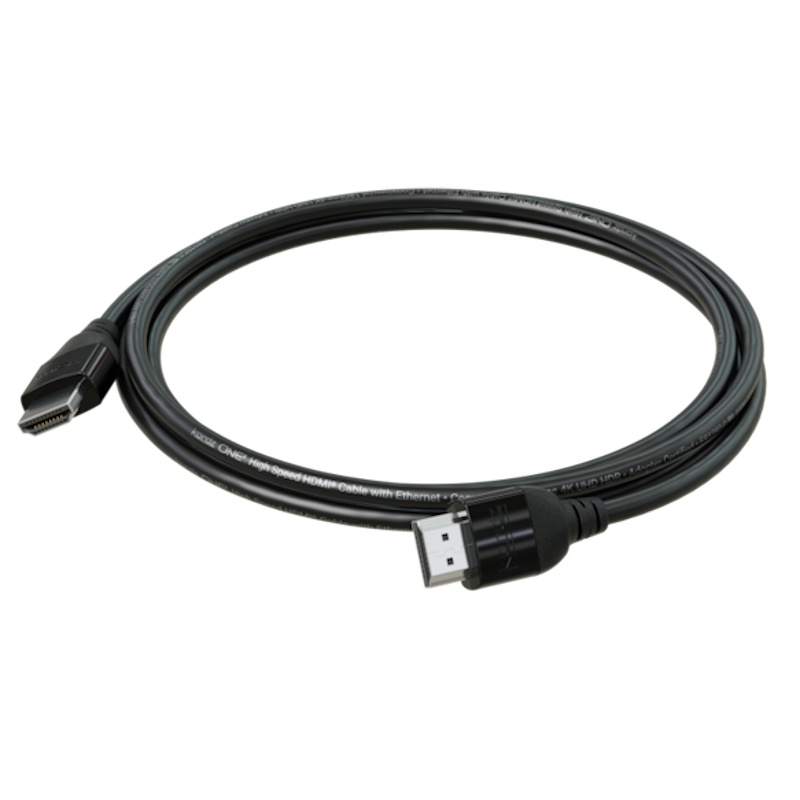

- Flexible, slim, fire-rated PVC jacket for easy installation in tight spaces

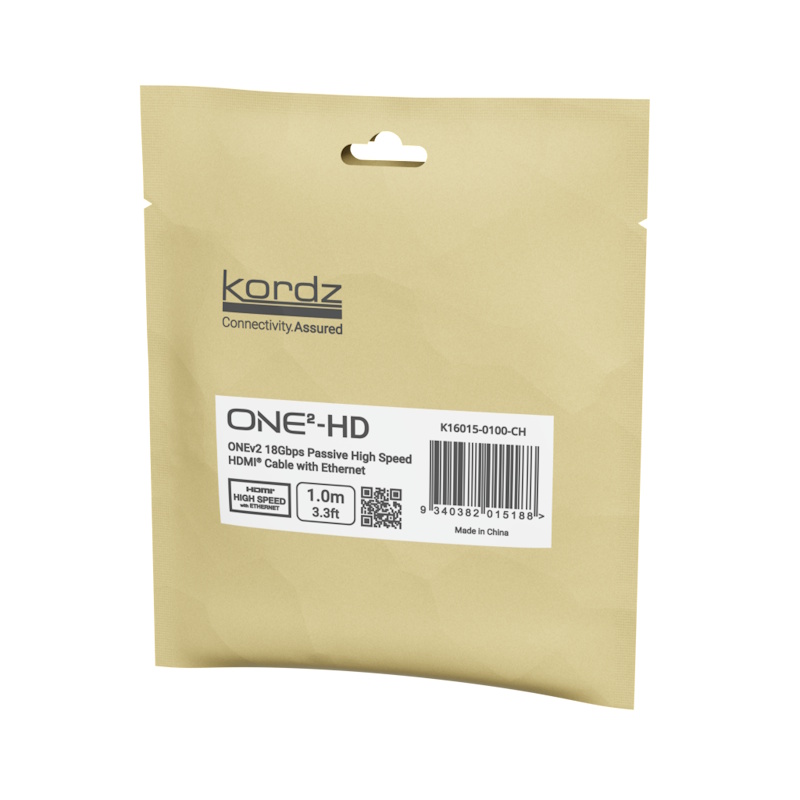

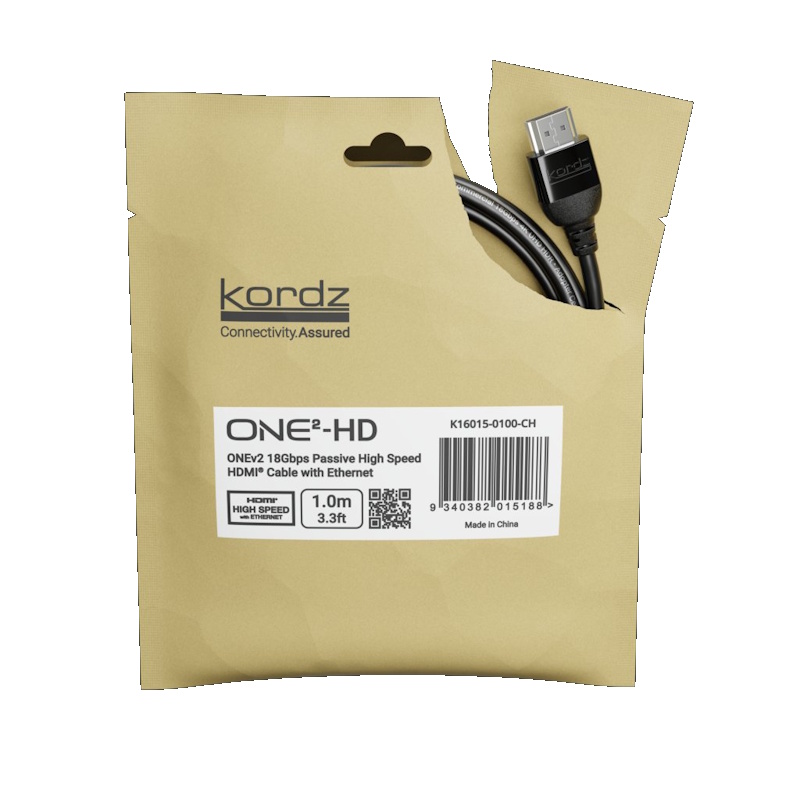

- Supplied in eco-friendly recyclable, quick-to-open paper packaging with hang tab
- Individually tested for consistent performance that’s ‘Connectivity Assured’
- Designed for economical, high-volume commercial integration projects
- Lifetime warranty for peace of mind
Application
Video Format Support – Data rate per channel / Aggregate, TMDS Bandwidth
All Lengths
480i/p, 576i/p: ≤ 540Mbpsc/1.62Gbps, 270MHz
720p/60, 1080i/60: 742.5Mbpsc/2.22Gbps, 371.25MHz
1080p – 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0:
23.98/24/29.97/30 – 742.5Mbpsc/2.22Gbps, 371.25MHz
50/59.94/60 – 148.5Mbpsc/4.455Gbps, 742.5MHz
3D-24/30 – 148.5Gbpsc/4.455Gbps, 742.5MHz
3D-50/60 – 2.97Gbpsc/8.91Gbps, 1.485GHz
Lengths to 3m only – High Speed
1080p – 10/12/16-bit RGB/YCbCr 4:4:4:
50/59.94/60fps – max. 2.97Gbpsc/8.91Gbps, 1.485GHz
2160p (UHD/4K)
HDMI 1.4b – 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0:
4096x2160p/24 (SMPTE) – 2.97Gbpsc/8.91Gbps, 1.485GHz
3840x2160p/23.98/24/29.97/30 – 2.97Gbpsc/8.91Gbps, 1.485GHz
HDMI 2.0 – 8-bit YCbCr 4:2:0
2160p*/50/59.94/60 – 2.97Gbpsc/8.91Gbps, 1.485GHz
VESA Graphics: Supports all as defined by HDMI 2.0 specification, up to 8.91Gbps
Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, ITU-BT.2020
Audio Formats Support: PCM 2.0-7.1, DD/DTS HD 7.1, 3D Audio (10.2 | 22.2 | 30.2ch)
3D Audio (10.2 / 22.2 / 30.2ch): Supported – device & video format dependent
HDMI Ethernet Channel: Supported – system dependent
HDMI Audio Return Channel: Supported – system dependent
*HDMI 2.0 2160p modes encapsulate both 4,096 or 3,840 Hres variants & 4:3 anamorphic pixel ratio support
Technical info
TECHNICAL SPECIFICATIONS
HDMI CERTIFICATION: ≤ 3.0M LENGTHS
HDMI CTS Certification: High Speed with Ethernet
Certified Data Rate: 3.4Gbpsc, 10.2Gbps aggregate
Supported Data Rate: > 3.4Gbpsc (4K UHD)
Supported HDMI Clock: 27-340MHz
HDMI COMPLIANCE: 5.0m – 10m lengths
HDMI CTS Certification: Standard with Ethernet
Certified Data Rate: 1.485Gbpsc, 4.56Gbps aggregate
Supported Data Rate: >1.485Gbpsc (1080p/60)
Supported HDMI Clock: 27-148.5MHz
MECHANICAL
Cable Diameter: Cable gauge dependent (see below)
Mounting Length: Cable gauge dependent (see below)
Cable Bend Radius: Cable gauge dependent (see below)
Retention Force (nominal): Cable9.9N (1kg / 2.2lbs) +10/-5%
CONSTRUCTION
Primary Conductors: Solid 32-26AWG OFC, length dependent
Insulation on TMD: Polyolefin/Foamed PE/PE, length dependent
Insulation on 4C + HEAC Pairs: Polyolefin/Foamed PE/HDPE, length dependent
Shielding on TMDS Pairs: Al/Mylar
Shielding Overall: AL/Mylar + AL braid 80% coverage
Cable Jacket: PVC – ≤ 3.0m lengths/UL CMG-rated – 5.0m-10.0m lengths
HDMI Connector Shell: PVC Injection molded, Nickel plated connector plate
HDMI Connector Pins: Solid OFC, 15μ” 24K Gold plated
Termination: Contactless IR induction soldering
HDMI Back shell: PVC boot strain relief
-
Warranty
The Kordz ONEv2 Passive HDMI Cable comes with our product Lifetime Warranty that promises maintained product functionality and performance for your lifetime.
